Understanding Tool Modes
Categories:
Tool Modes
You can switch between mouse modes using hotkeys or tool selection. Here are hotkeys that control your mode:
Spacebar: Temporarily enables the alternative mouse mode (default mode vs pan mode)
Escape: Switches to default mode irrespective of which mode you are currently using.
Interacting with Components

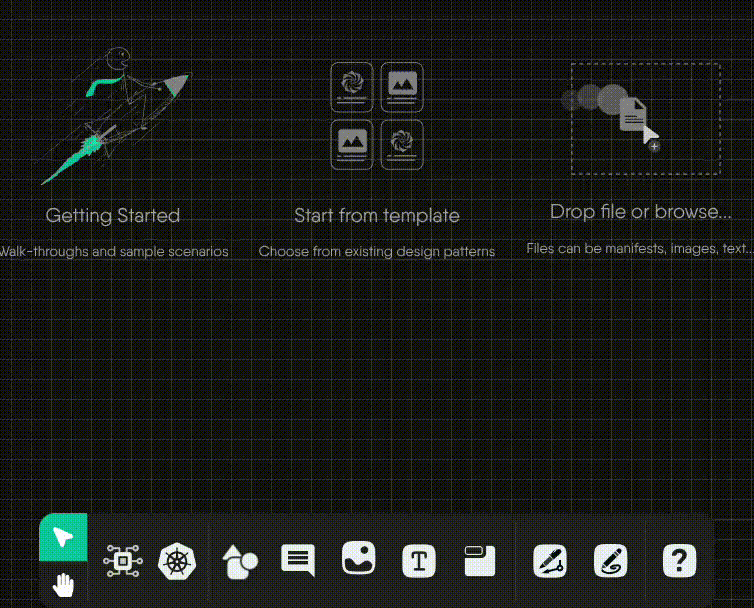

Default Mode (no tool selected)
Hover: Displays subtle indication of focus by outlining the component with a light green color.
Cursor style: “default (arrow)”

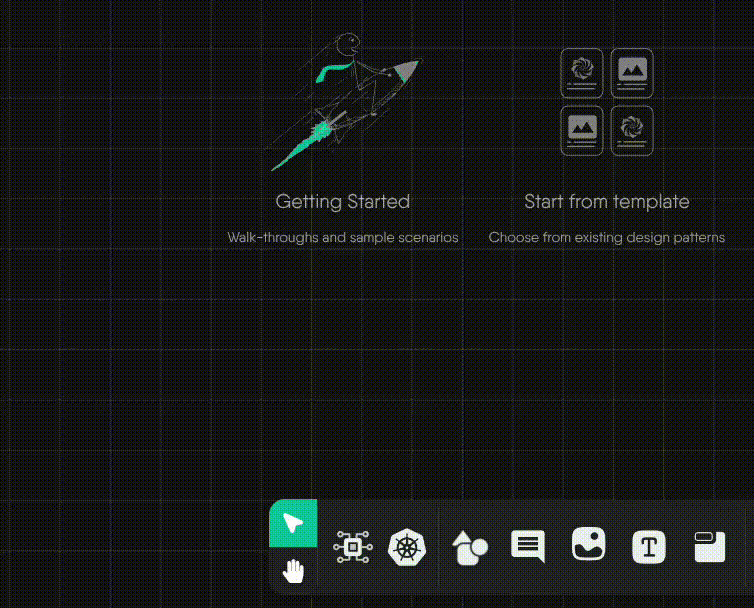

Click-and-drag: Moves component in the direction of the mouse.
Cursor style: “move”

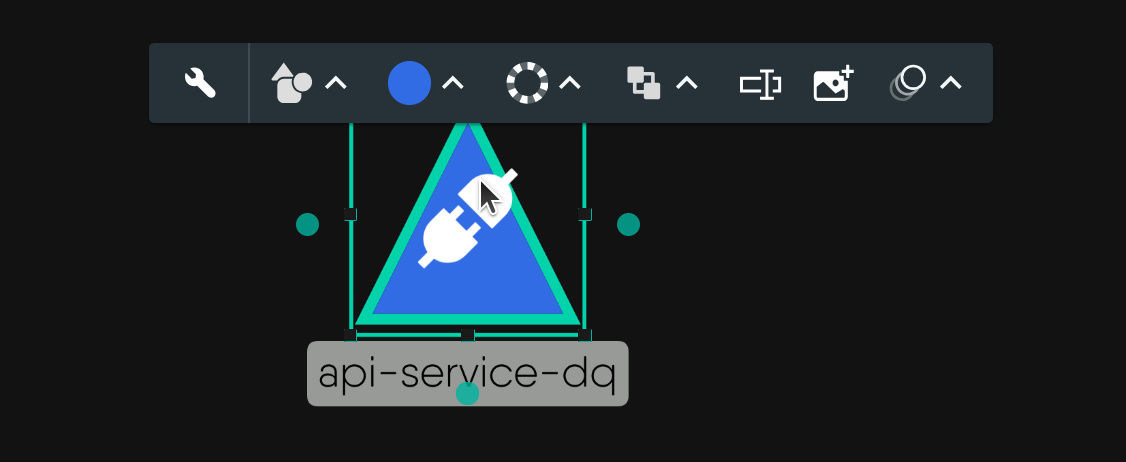

Click: Displays the component toolbar, resize box, and connections handles.

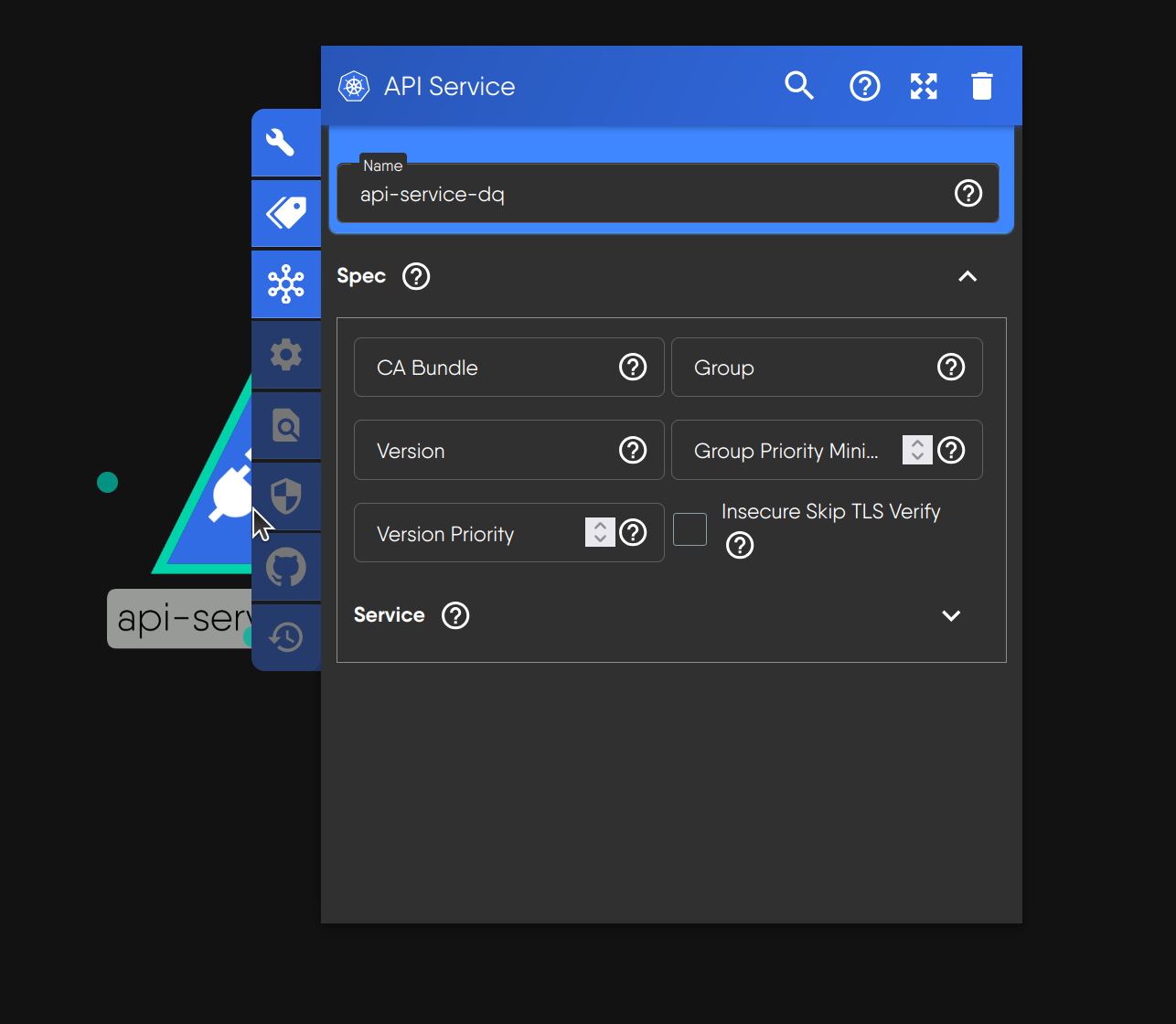

Double-click:
- Components - Opens the component configurator.
Cursor style: “pointer”

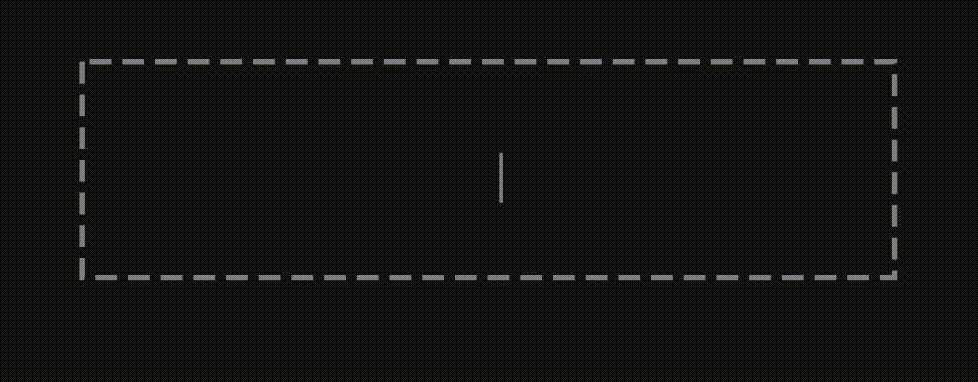

- Textbox - Enables text editing inside the component.
Cursor style: “text”

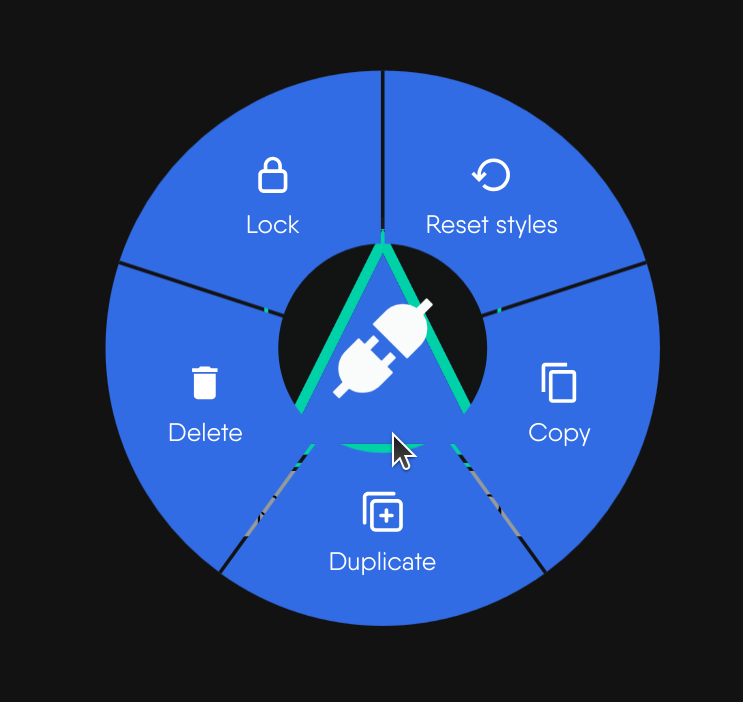

Right-click: Opens the circular component context menu.
Interacting with the Canvas
Default Mode (no tool selected)
Hover: Nothing
Cursor style: “default (arrow)”
Click: Nothing
Cursor style: “default (arrow)”
Double-click: Opens the quick component configurator.
Cursor style: “pointer”
Right-click: Opens design context menu
Cursor style: “default (arrow)”, with “pointer” on hover of a menu item.

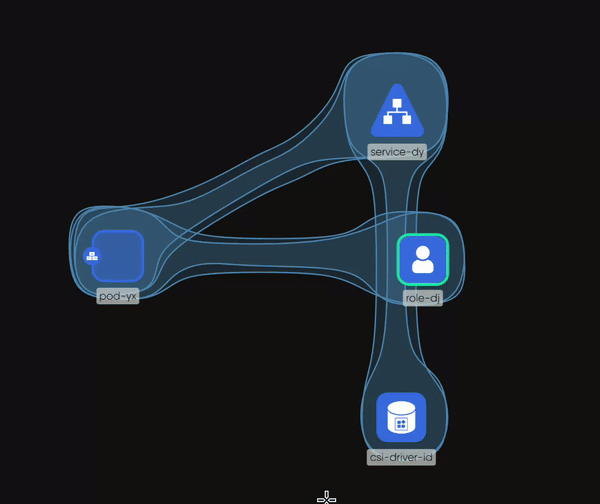

Click-and-hold: Initiates box selection for selecting of multiple components.
Cursor style: “crosshair”

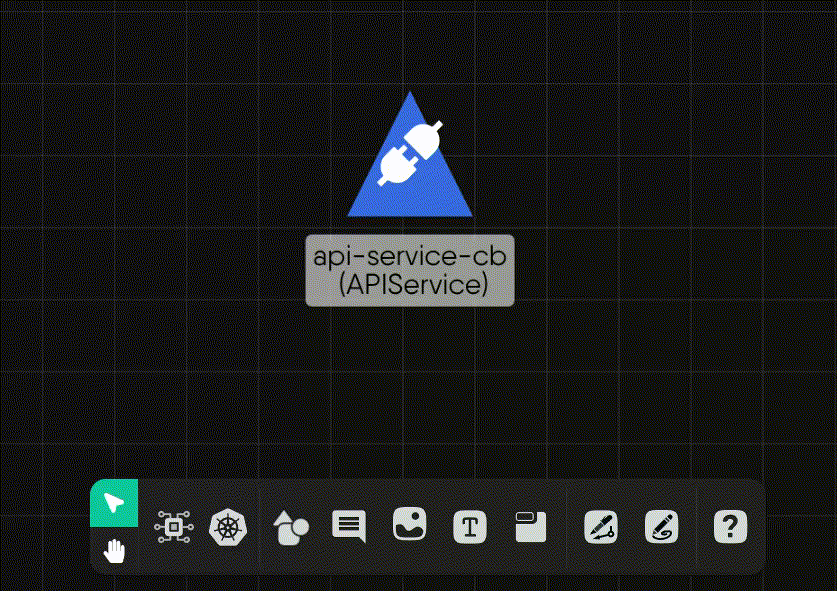

Scroll wheel: Pan up or down in the direction of the mouse.
Cursor style: “grabbing-hand”

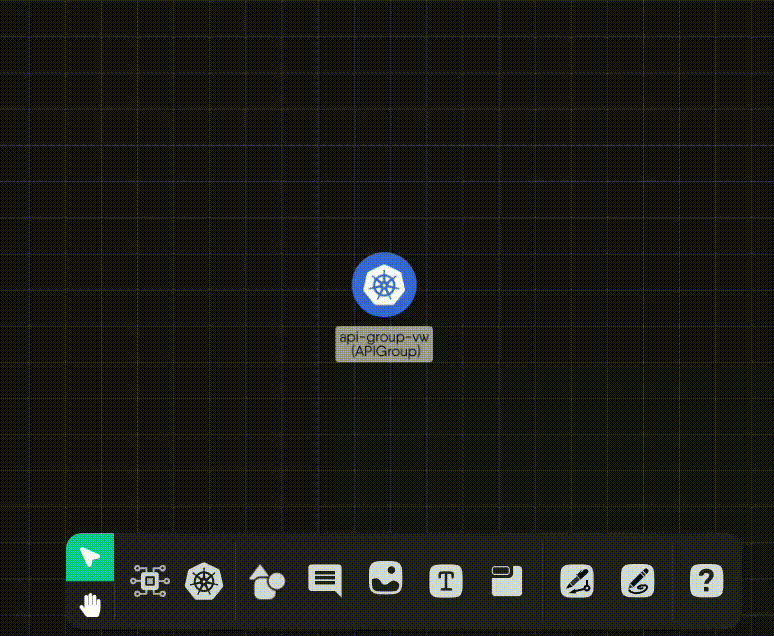

Scroll wheel + CMD/CTL: Zoom in/out in the direction of the mouse.
Cursor style: “grabbing-hand”

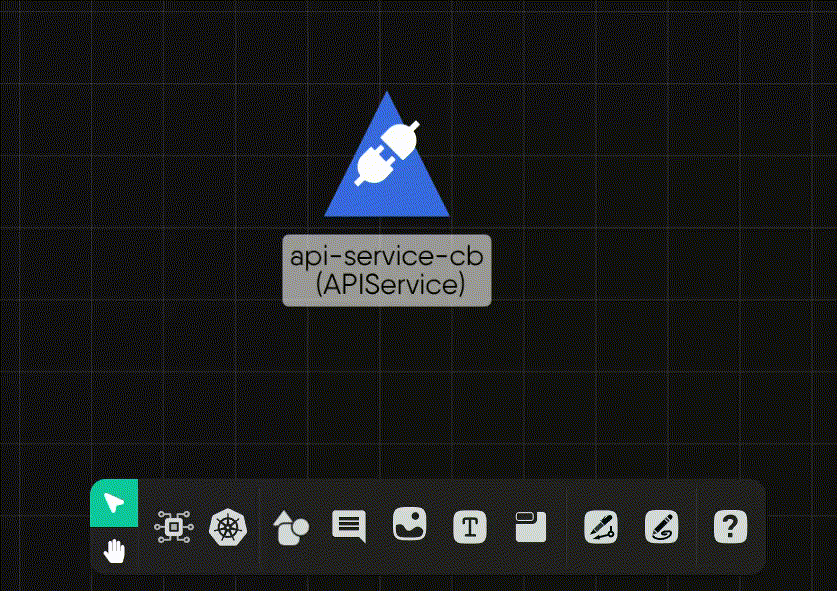

Horizontal scroll wheel: Pan left or right in the direction of the mouse.
Cursor style: “grabbing-hand”

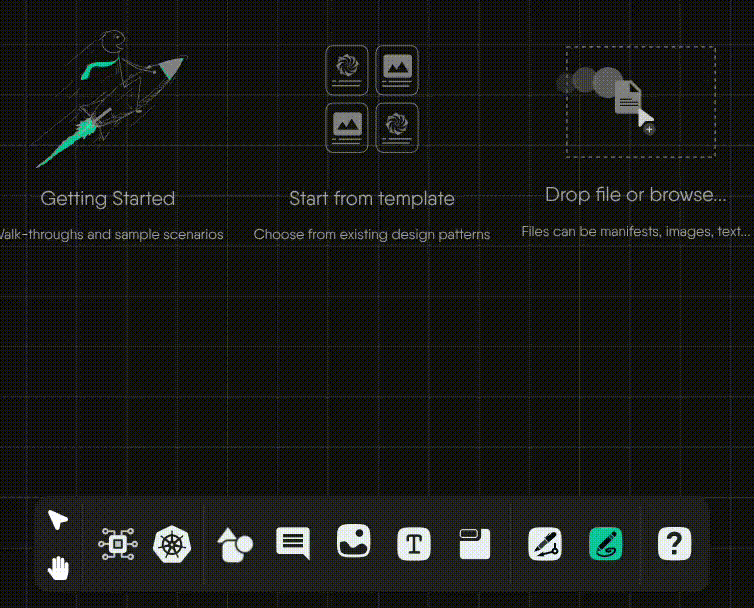

Pencil Mouse Mode
Pencil lines do not connect individual components, but offer annotating capability, allowing you to take notes and draw annotations to enhance your designs.

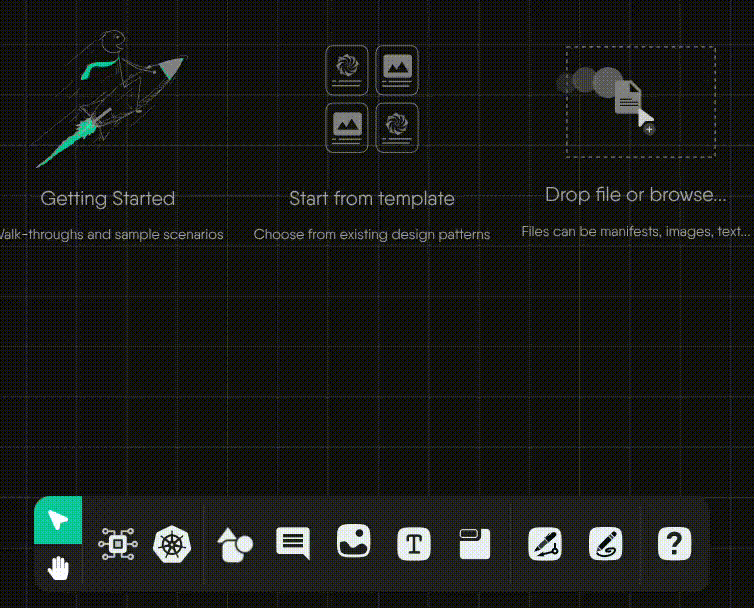

Hover: Nothing
Cursor style: “custom(pencil)”

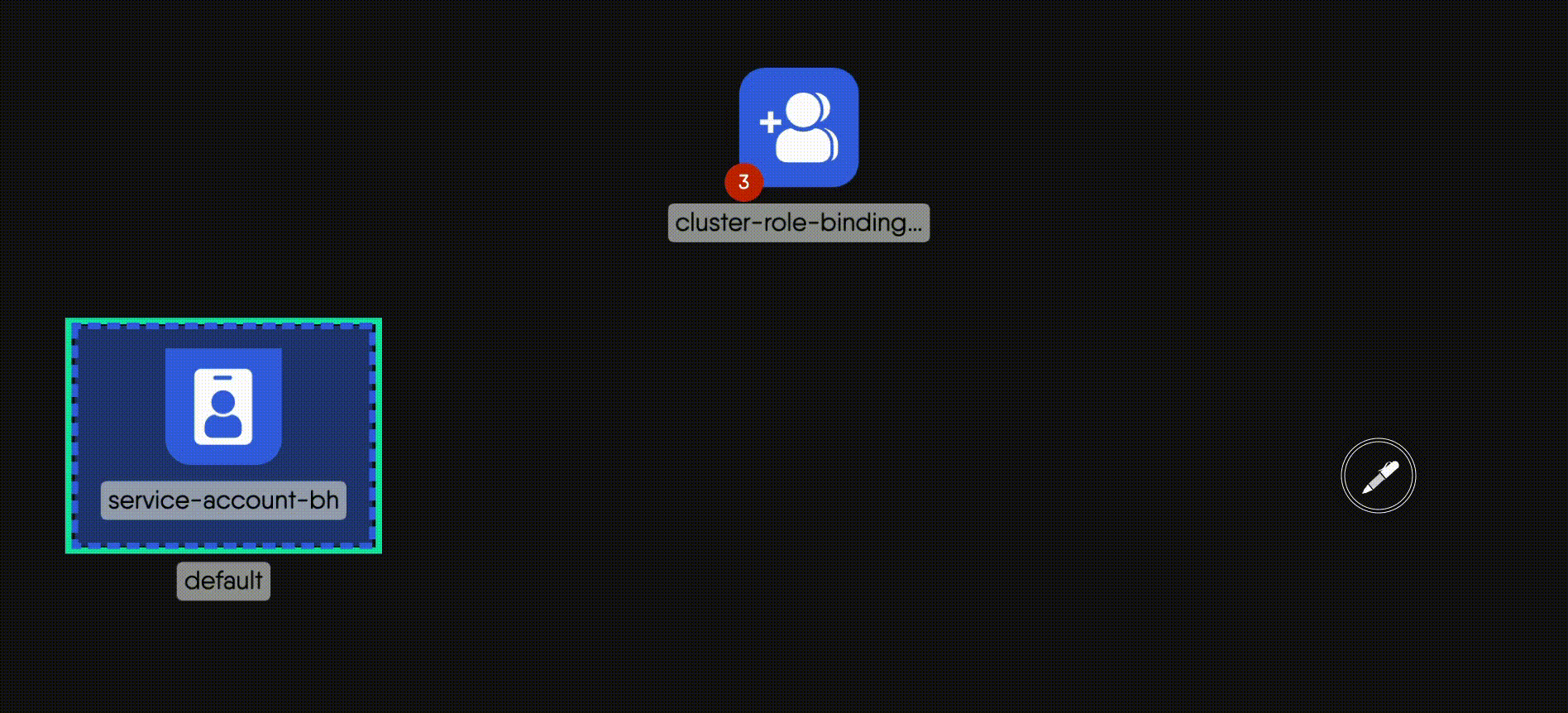

Mouse down and drag: Start drawing a freeform line.
Cursor style: “custom(pencil)”

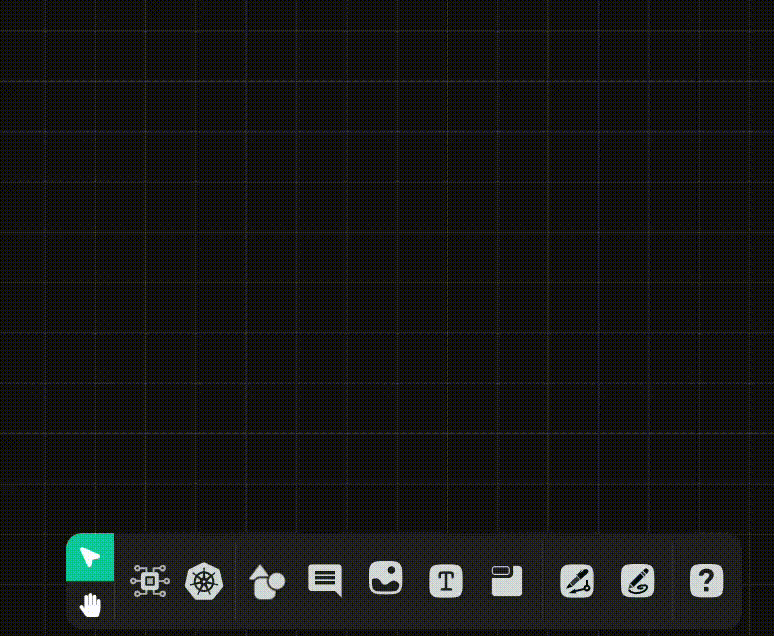

Mouse down + SHIFT: Start drawing a straight line in the direction of the mouse, which will initiate and remain as either a vertical or horizontal line.
Cursor style: “custom(pencil)”

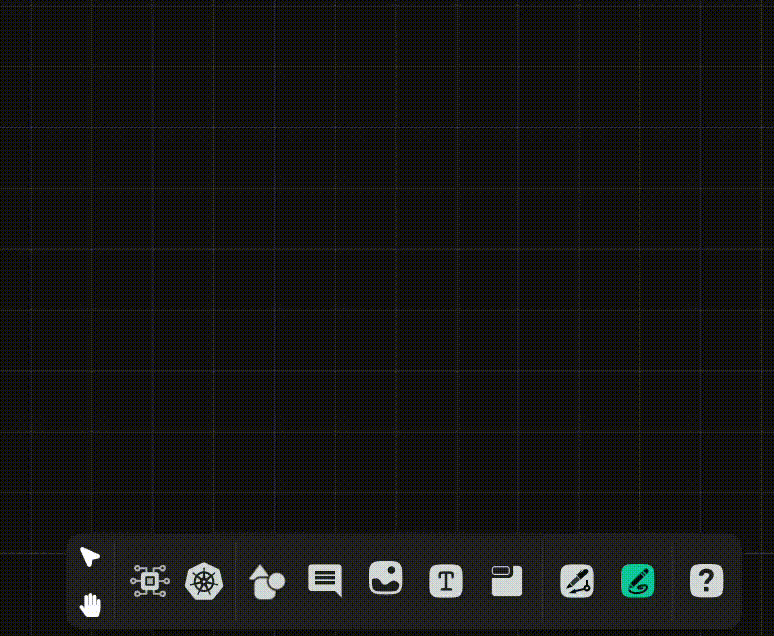

Mouse up: Complete the line and renders into a component with full styling capabilities.
Cursor style: “custom(pencil)”
Click: Draws ink from the pencil.
Cursor style: “custom(pencil)”
Scroll wheel: Nothing
Cursor style: “custom(pencil)”
Scroll wheel + CMD/CTL: Nothing
Cursor style: “custom(pencil)”
Connector Tool Mode
The Connector tool operates as a creator of annotation relationships. Note that the connector tool has two behaviors depending upon the context in which you initiate the connection.
Connector Behaviors

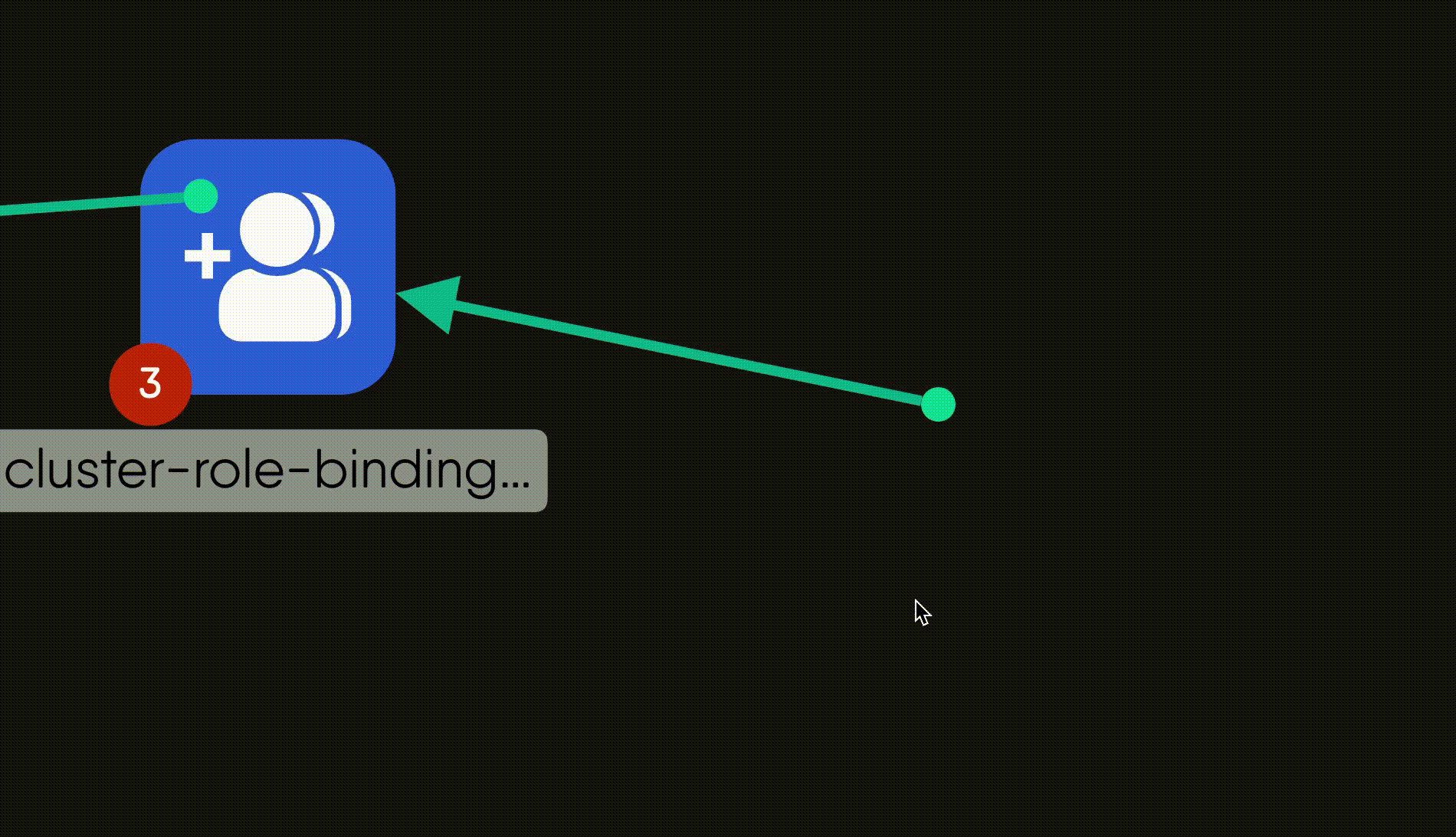

Component-connect Behavior: When you click an empty spot on the canvas, and drag to another empty spot on the canvas, you get a joint (aka a terminal node) from which you can create new connections as well as new edge relationships.
Canvas-connect Behavior: When you click an empty spot on the canvas, and drag to an existing component, you get an annotation edge relationship.
Component-connect Behavior: When you click an empty spot on the canvas, and drag to another empty spot on the canvas, you get a joint (aka a terminal node) from which you can create new connections as well as new edge relationships.
Canvas-connect Behavior: When you click an empty spot on the canvas, and drag to an existing component, you get an annotation edge relationship.
Hover: Nothing
Cursor style: “connector (pen)” (might change in the future)
Mouse down and drag: Nothing

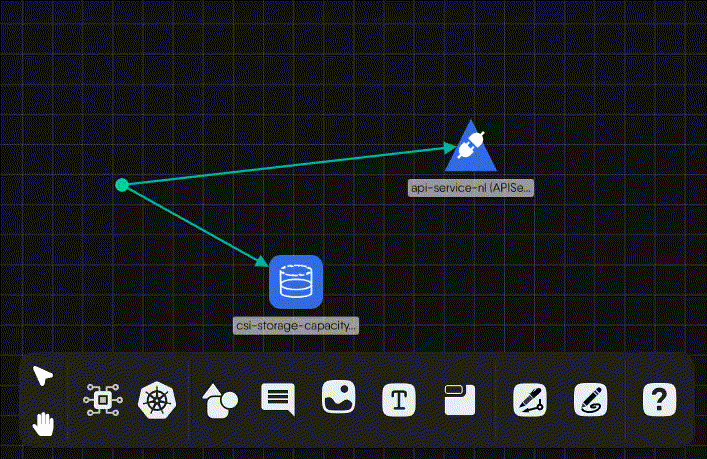

Creating connections happens in three phases.

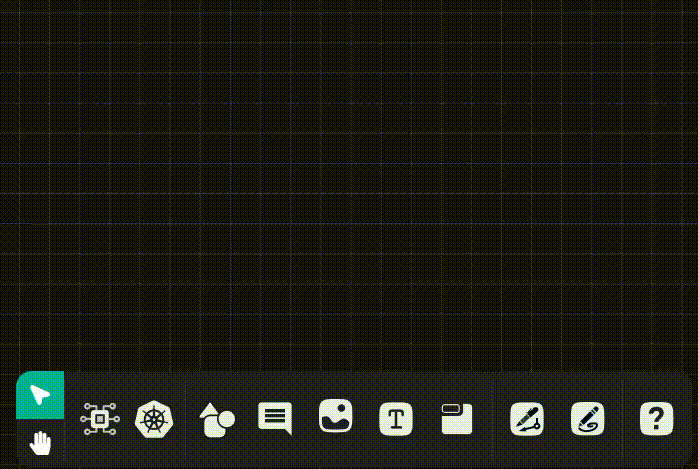

- Click (press primary mouse button and release): Initiate connection.
Cursor style: “connector (pen)”
- Click and move: if a connection was initiated, moves the ghost edge around else does nothing.
Cursor style: “connector (pen)” and the annotation edge following the mouse around.

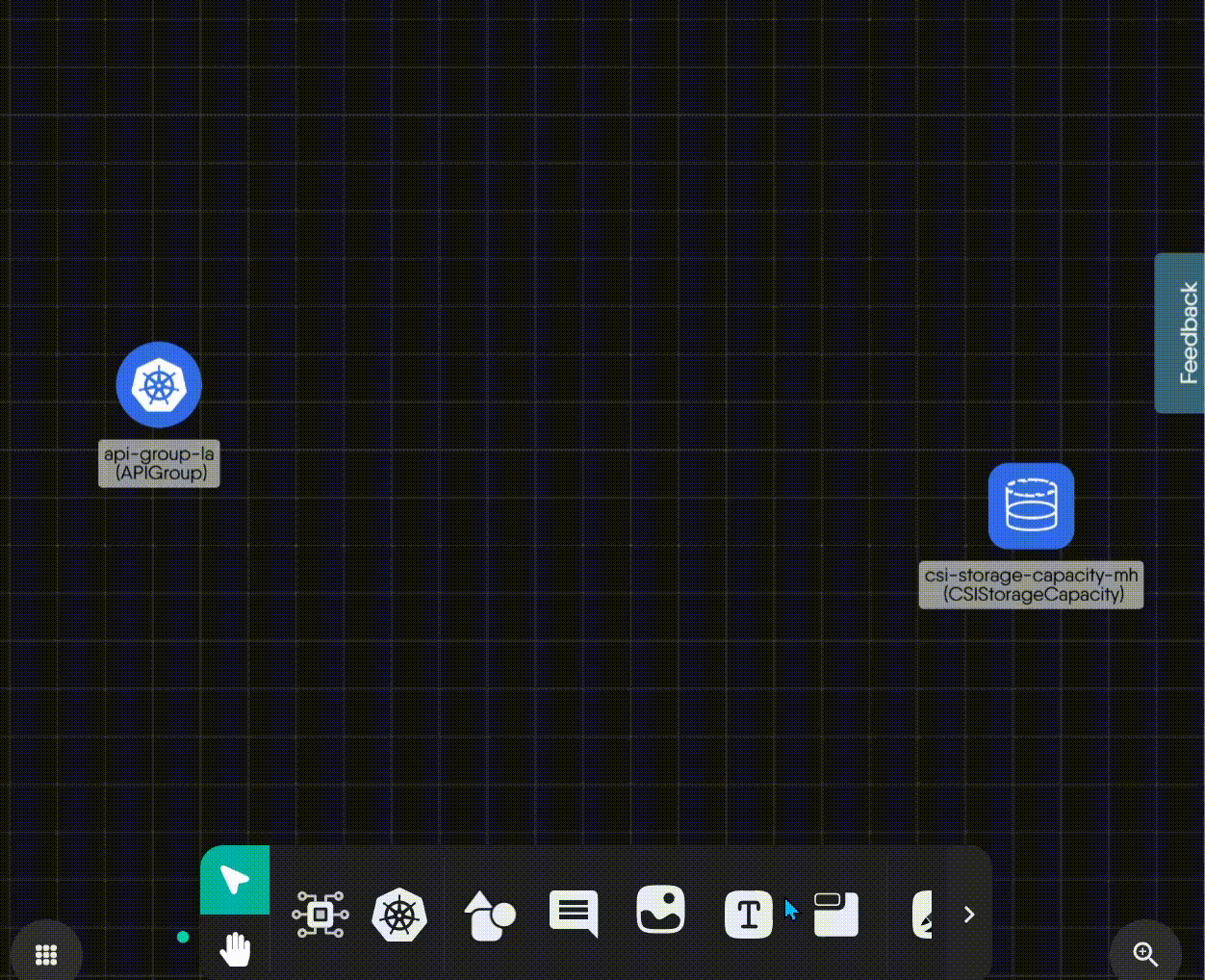

- Click while connecting: Establish and render connection.
Cursor style: “connector (pen)”
Pan Mouse Mode
Hover: Nothing
Cursor style: “hand”
Click-and-hold: Grab the canvas and pan in the direction of mouse movement.
Cursor style: “grabbing-hand”
Scroll wheel + CMD/CTL: Zoom in/out in the direction of the mouse.
Cursor style: “grabbing-hand”
Horizontal scroll wheel: Pan left or right in the direction of the mouse.
Cursor style: “grabbing-hand”
