Relationships

What relationships are, the kinds Kanvas draws and evaluates, how each one forms, and how relationships keep component configuration consistent.
Tags:
Categories:

A relationship records how two components connect: one runs inside the other, one sends traffic to the other, one mounts the other’s storage, or both carry the same label. Relationships do more than draw lines. Each relationship definition names the configuration fields on both sides that must agree, so Kanvas can write values from one component into the other and keep the design consistent as you edit. The definitions come from the Meshery registry, not from Kanvas, so the set of relationships available to you depends on the models you use.

The Layers panel lists eight kinds of relationship, which fall into three families.

An edge is a line between two components that interact. You draw it by hand. Kanvas lists the edges the registry allows from the component you start on, and highlights the targets that are compatible.

SubtypeMeaningExample
NetworkTraffic can flow between the components. The edge labels source and target ports and protocols.A Service gives a stable endpoint to a Deployment’s replicas.
MountOne component gives storage or files to another, through a binding component placed between them.A PersistentVolume mounted into a Pod.
ReferenceOne component points to another by name, identifier, or scope. It declares a dependency and does not itself grant access or carry traffic.A Pod that references a ConfigMap or a Secret.
AnnotationA line you draw with the Pen tool to explain flow. It has no effect on configuration.A traced request path on a diagram.

An edge network relationship between a Service and a Deployment

An edge mount relationship between a PersistentVolume and a Pod

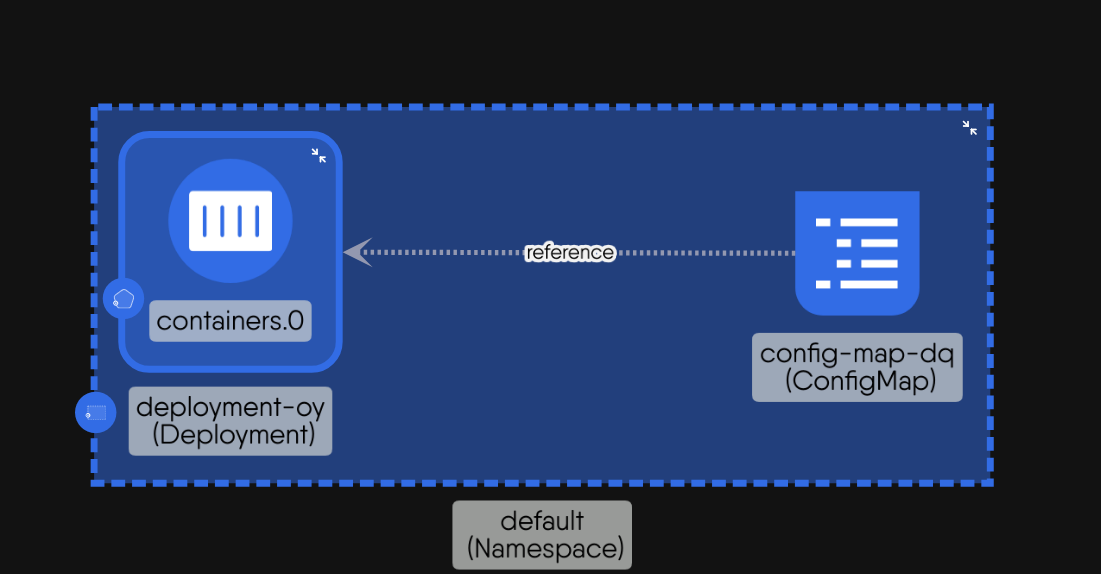

An edge reference relationship from a Deployment to a ConfigMap

The registry can define other edge subtypes. They appear in the edge picker when they can start from the selected component.

A hierarchical relationship nests one component in another. A component has at most one parent.

  • Inventory. The child is drawn inside its parent, as a Pod sits inside a Namespace. Because the Namespace’s name is the Pod’s namespace, the parent’s configuration flows to the child.
  • Wallet. The child is absorbed into its host and shown as a count badge on the host, as a sidecar is attached to a workload.
  • Alias. The child stands for one field inside its parent. Editing the alias edits that field of the parent.

A hierarchical parent relationship between a Namespace and a Pod

Components that carry matching labels or annotations form a TagSet. Kanvas never asks you to draw one. It appears when the labels match and disappears when they stop matching. See Work with Tags.

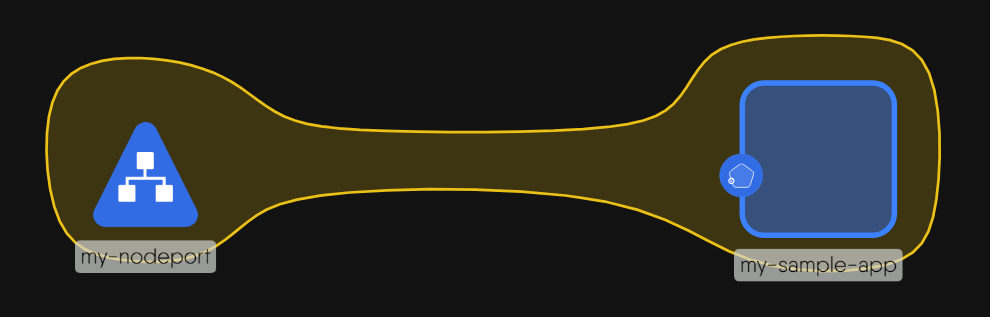

A TagSet drawn around components with matching labels

Three mechanisms create relationships:

MechanismKinds
You create them: drag an edge, drop a component into a parent, or draw with the PenEdge, inventory, wallet, annotation
Evaluation creates them from the registry definitionsTagSets, alias, and any relationship the definitions say should exist
Paste or duplicate copies them with the componentsAny relationship whose two ends are both in the copied set

Deleting a component marks the relationships that touched it as deleted. The next evaluation then reverses their effects on configuration.

Evaluation is the process that applies relationship definitions to a design. It runs shortly after a change, writes values across related fields, and can add or remove components and relationships. The direction of a write depends on the definition and the kind.

KindTypical directionExample
InventoryParent to childThe child takes its namespace from the parent Namespace.
EdgeSource to targetA Service’s port is written into the related Deployment’s container port.
WalletAttached item to hostThe host takes the item’s configuration.

Treat these as typical. The relationship definition is the authority, and Kanvas does not hard-code a direction. Policy Evaluation explains when evaluation runs and why results can change after you stop editing.

Annotation edges, TagSets, and the drawing of any relationship never change what Kanvas deploys by themselves. What gets deployed is the configuration of each component. Relationships matter because they decided what that configuration is.
