How Kanvas Works with Meshery and Layer5 Cloud

How Kanvas runs inside Meshery, where designs are stored, what talks to your clusters, and what differs between kanvas.new and self-hosted Meshery.

Categories:

Designer

Kanvas is not a standalone service. It is an extension that runs inside Meshery, relies on Meshery Server to reach your clusters, and relies on a remote provider, Layer5 Cloud, to store and share designs. Knowing which part does what explains why some features need a cluster connection, why others need an account, and why the hosted Kanvas at kanvas.new offers a subset of what a self-hosted Meshery deployment offers.

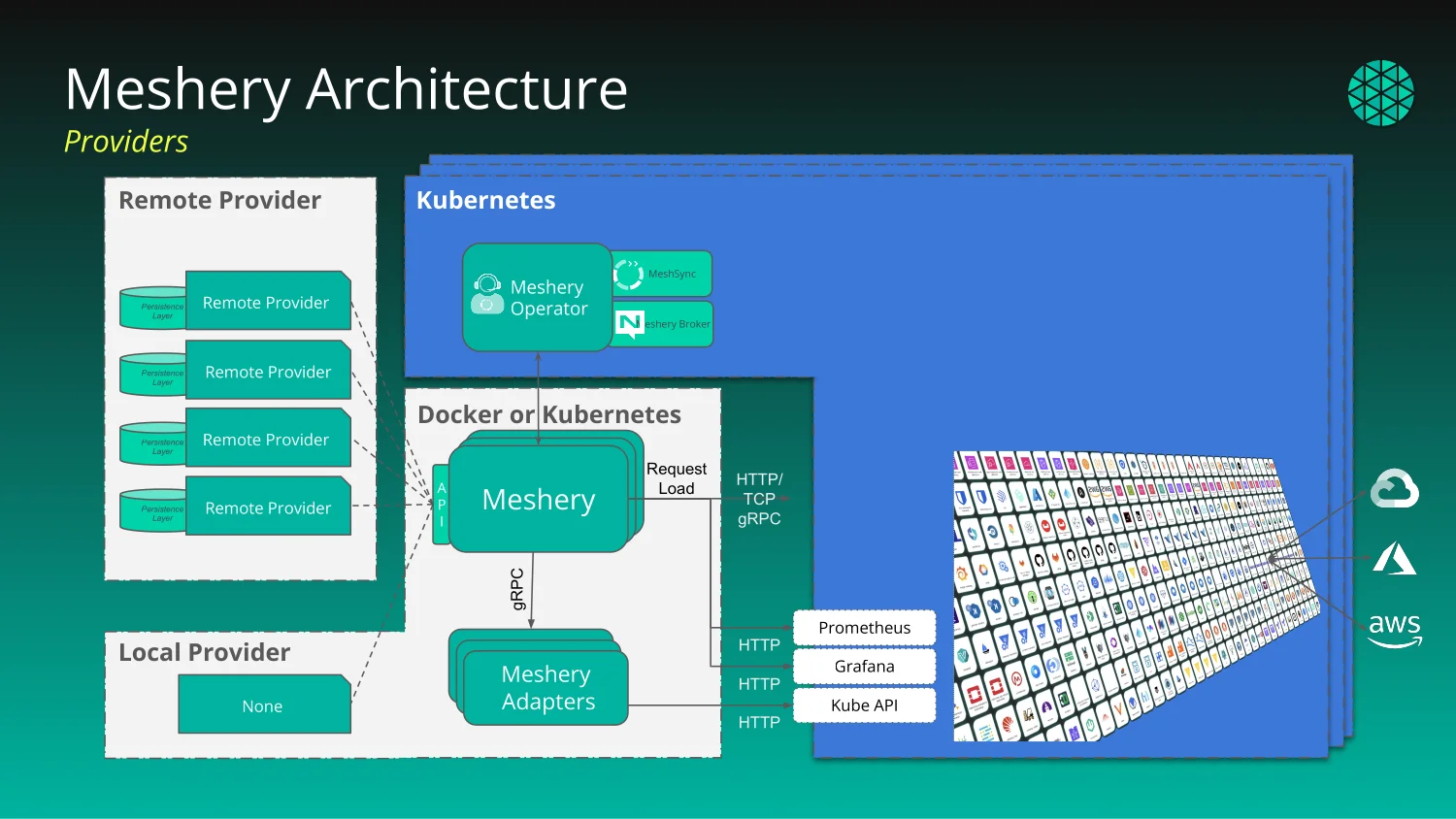

Architecture diagram titled Meshery Architecture - Providers. On the left, a Remote Provider and a Local Provider connect to Meshery in the center. On the right, Meshery connects to Kubernetes clusters, where Meshery Operator runs MeshSync and Meshery Broker, and to adapters. — Read the diagram from left to right. Providers sit on the left: Meshery runs with either a remote provider (Layer5 Cloud for Kanvas), which stores designs and handles identity and sharing, or a local provider. Meshery sits in the middle and mediates every request. Your clusters sit on the right, where Meshery Operator runs MeshSync and Meshery Broker to report live state back to Meshery.

Kanvas is a Meshery extension 🔗

Kanvas has two parts, and both run inside Meshery:

The Kanvas interface loads into Meshery UI at runtime. Designer and Operator modes are screens of Meshery UI supplied by the extension.
A server-side plugin is loaded by Meshery Server and adds Kanvas behavior to it.

Because Kanvas lives inside Meshery, it inherits Meshery’s connections to your clusters and Meshery’s choice of provider.

Every request goes through Meshery Server 🔗

Kanvas sends every request to Meshery Server. Meshery Server then does one of two things:

Answers local requests itself. Requests about your connected clusters and their resources stay within Meshery.
Forwards provider-bound requests to the remote provider. Requests for designs, views, the catalog, sharing, and support go to Layer5 Cloud, and Meshery Server relays the response back to Kanvas.

Kanvas never calls Layer5 Cloud directly, with one exception: real-time collaboration, described below.

The provider also decides which features Kanvas offers. Each provider publishes a capability document that lists the features it supports, and Kanvas enables only those features. The hosted Kanvas at kanvas.new ships its own capability document.

Where designs live 🔗

The remote provider persists your designs. Layer5 Cloud stores each design and every version of it, records who a design is shared with, hosts the catalog of published designs, and keeps the event log. For example, when Kanvas completes a validation of a whole design, it publishes a validation event to the Layer5 Cloud event log.

What talks to your clusters 🔗

Meshery Server, not your browser, talks to your Kubernetes clusters. It reaches them through components it deploys into each cluster:

Meshery Operator runs in the cluster and deploys MeshSync and Meshery Broker there.
MeshSync streams the live state of the cluster to Meshery Server.

Meshery Server feeds the live state from MeshSync into Operator mode, which is why Operator shows changes as they happen in the cluster. When you dry-run, deploy, or undeploy a design, Meshery performs the operation against the Kubernetes contexts you selected, or against all connected contexts when you select none. Meshery can also connect to adapters, which Kanvas does not require for designing or deploying.

Every resource Kanvas deploys carries a label with the id of its source design and annotations with the design version and component id. Operator’s per-design view uses that label to show exactly what one design produced. See Designs and Components.

Real-time collaboration: the one direct path 🔗

Real-time collaboration is the only path from your browser straight to Layer5 Cloud. When you edit a design with others, your browser connects to a signaling service hosted by Layer5 Cloud, which introduces the participants to each other. After that, edits synchronize directly between participants’ browsers, peer to peer over WebRTC, rather than through Meshery Server.

Hosted kanvas.new versus self-hosted Meshery 🔗

The hosted Kanvas at kanvas.new is for authoring designs. Every capability that needs a cluster is reserved for Meshery deployments: the Meshery Playground or your own self-hosted Meshery.

Capability	kanvas.new, anonymous	kanvas.new, signed in	Meshery Playground or self-hosted Meshery, signed in
Author and edit designs	Available	Available	Available
Import designs	Available	Available	Available
Share and publish designs	Requires sign-in	Available	Available
Validate	Not available	Not available	Available
Dry-run	Not available	Not available	Available
Deploy and undeploy	Not available	Not available	Available
Operator mode	Not available	Not available	Available
Connect clusters	Not available	Not available	Available

Every action in the table also requires the matching permission in your organization. Validate, dry-run, deploy, and undeploy are disabled while the design is empty.

What you see when you reach a boundary:

A cluster-bound capability on kanvas.new opens a prompt that explains Operator mode is not available on kanvas.new and directs you to the Meshery Playground or a self-hosted Meshery deployment.
Sharing or publishing while anonymous opens a “Sign in to” prompt that names the feature and offers a single Sign in action. You are anonymous when no user is signed in or the signed-in user has anonymous status.
Signing in navigates the whole page to the provider and returns you to the page you started from. If the provider address is malformed, sign-in does not start and Kanvas shows the error “Sign-in could not start:” followed by the reason.

The local provider limitation 🔗

Meshery can run with a local provider instead of a remote one. Under the local provider there is no remote service to forward requests to, so every provider-bound feature, including views, the catalog, sharing, and support requests, returns HTTP 501 Not Implemented. Use a remote provider such as Layer5 Cloud for any feature that depends on it.
