Integrating GitHub with Meshery

Introduction 🔗

The GitHub integration connects your GitHub account to Layer5 Cloud through the Layer5 GitHub App. Once connected, you can browse the repositories you granted, pick Kubernetes manifests, Helm charts, Docker Compose files, Kustomize, and Meshery designs, and import each file as a design. The same connection can also install a pull-request snapshot workflow.

Use it when your infrastructure already lives in Git. For a one-off file, import it directly instead.

You need:

• A Layer5 Cloud account.
• A GitHub account that can install a GitHub App on the user or organization that owns the repositories. For an organization, an owner may have to approve the installation.
• The View Connections permission, which shows the Integrations area. See Default Permissions.

The hosted service at cloud.layer5.io provides the Layer5 GitHub App. A self-hosted deployment uses its own App. See Self-hosted GitHub App requirements.

How to Integrate GitHub with Meshery 🔗

You can start the Connect wizard from the Integrations area of Spaces in Layer5 Cloud, or from the Extensions page of a Meshery Server by enabling the Kanvas Snapshot GitHub Action.

The wizard has seven stages.

If you open the GitHub card’s connection count before you have connected, the GitHub Connections window reads “No GitHub connections yet”. Click Connect GitHub there to start the wizard.

The three optional stages are covered in Kanvas Snapshot.

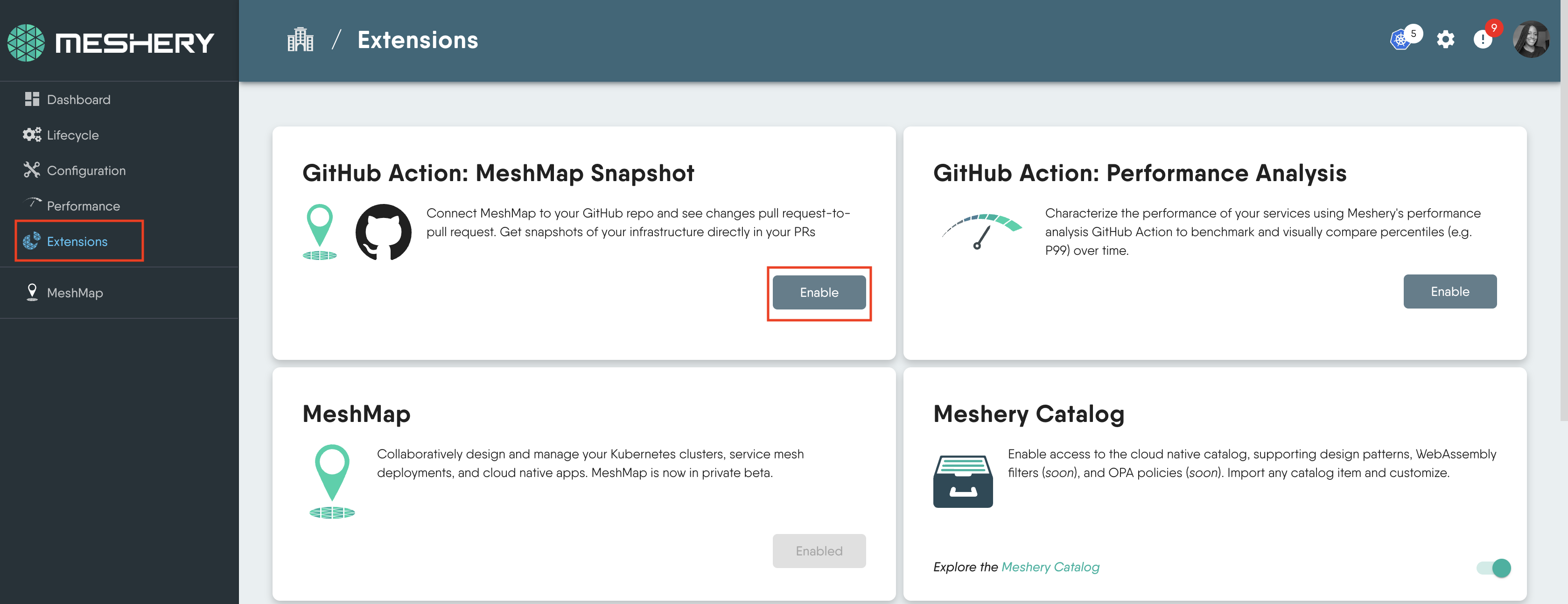

Access Integrations Page from the Meshery Extensions Page 🔗

1. Go to Extensions.
2. Click Enable for GitHub Action: Kanvas Snapshot.
3. You will be redirected to the Integrations page.

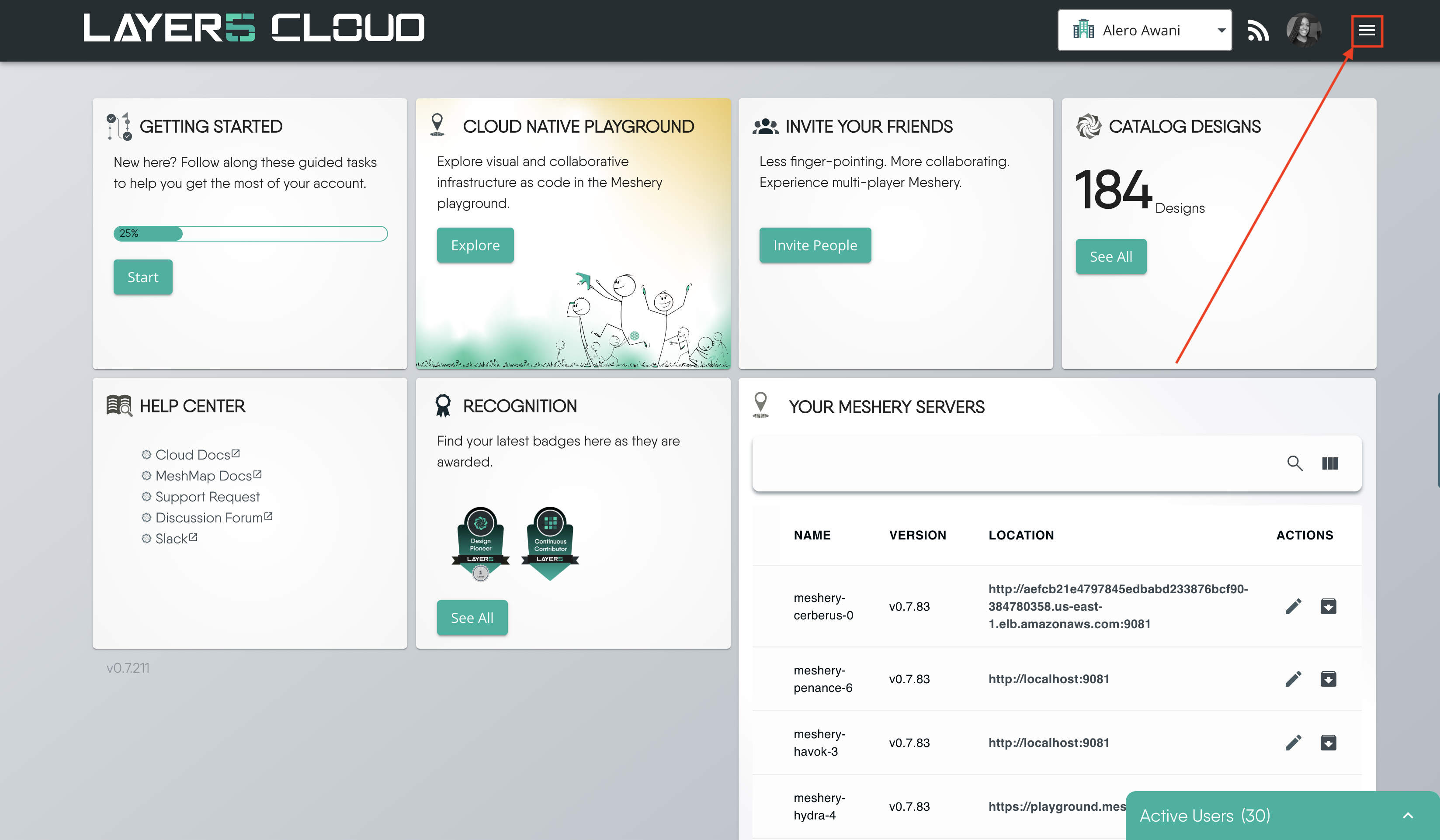

Navigate to the Integrations Page via the Layer5 Cloud Dashboard 🔗

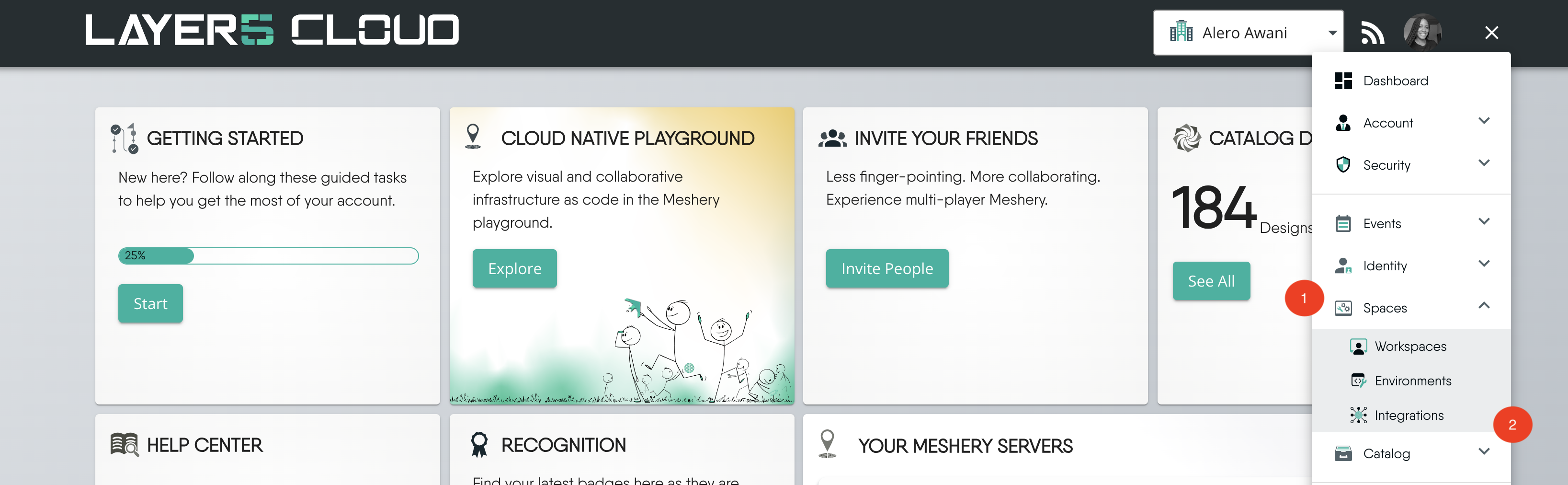

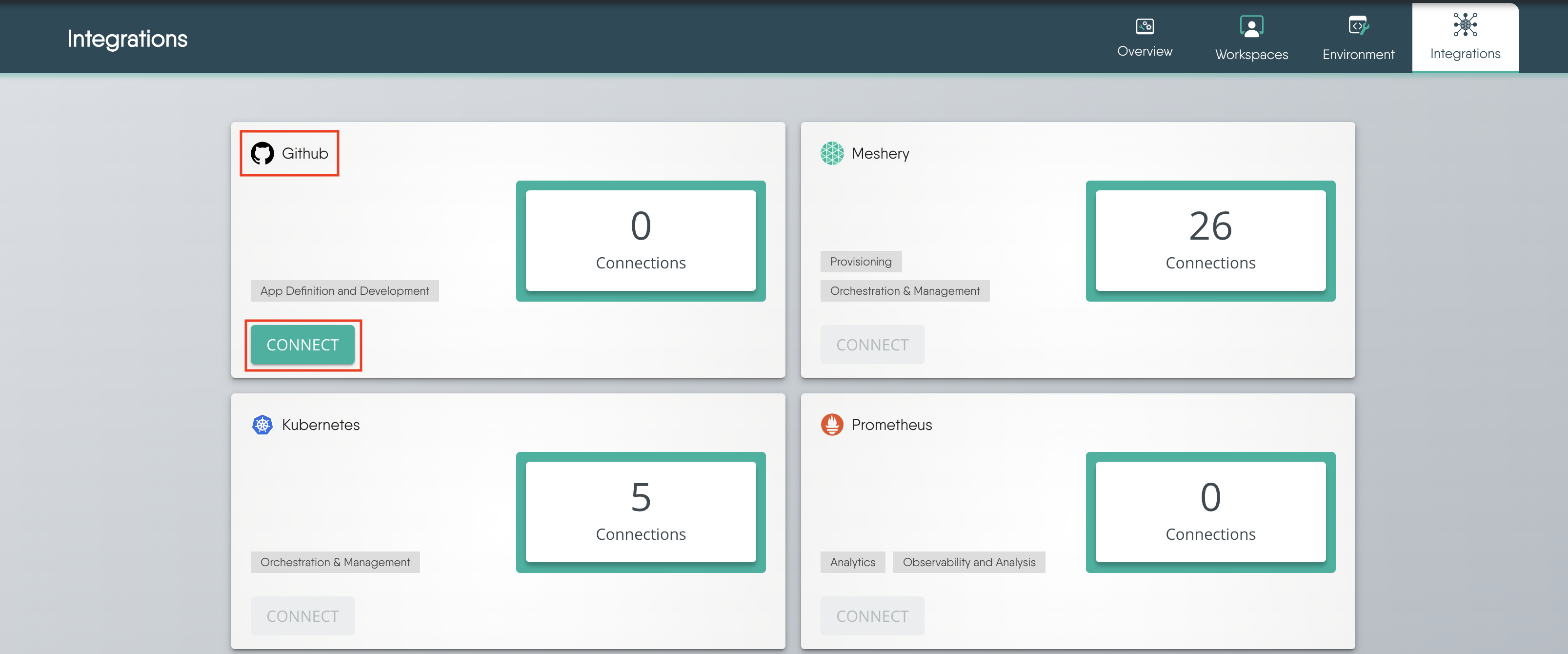

1. On Layer5 Cloud, open Spaces and select Integrations. The page is shown to roles that hold View Connections.
2. Click Connect to begin, or open the GitHub card.

Connect GitHub and Import Designs 🔗

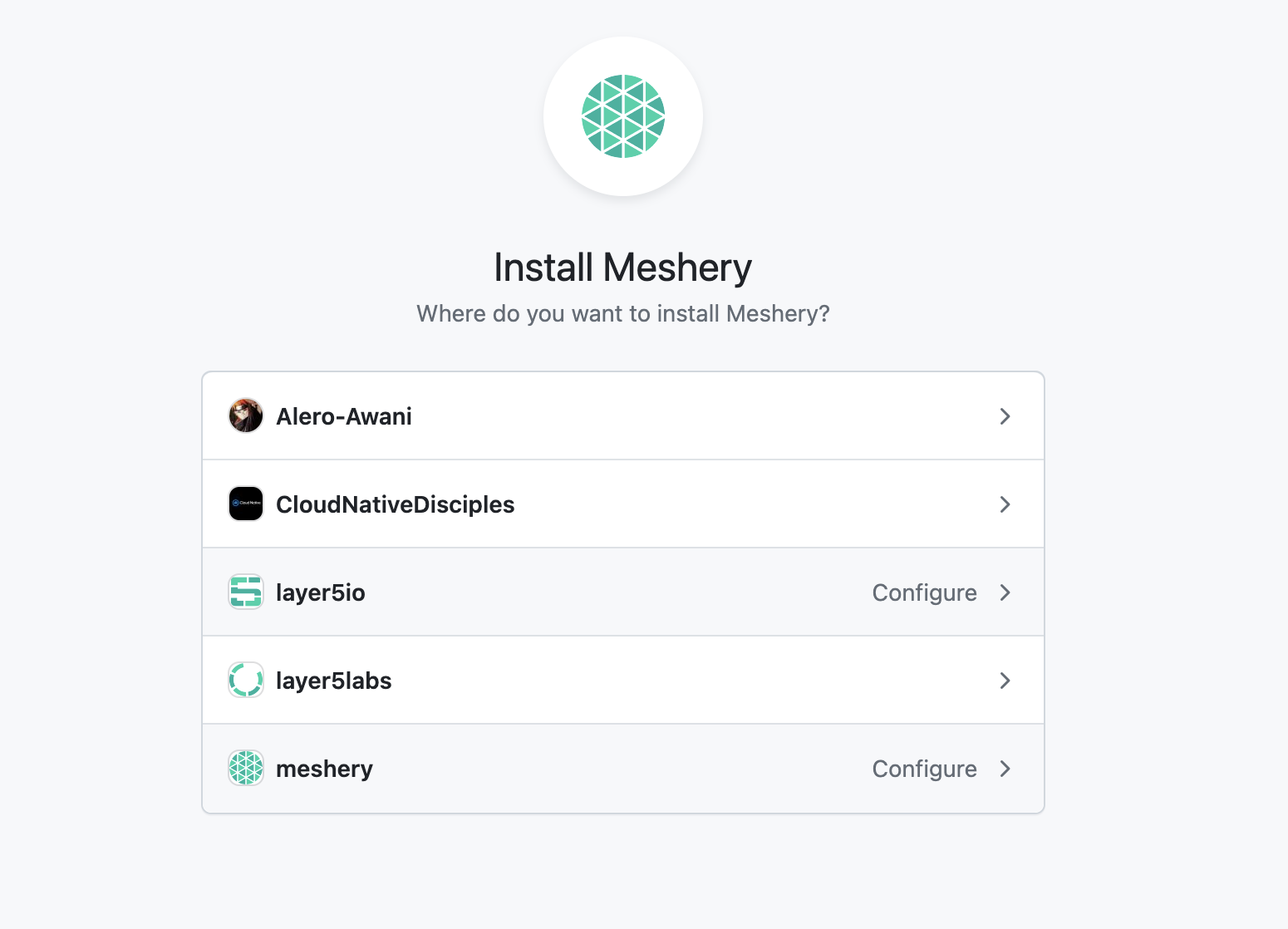

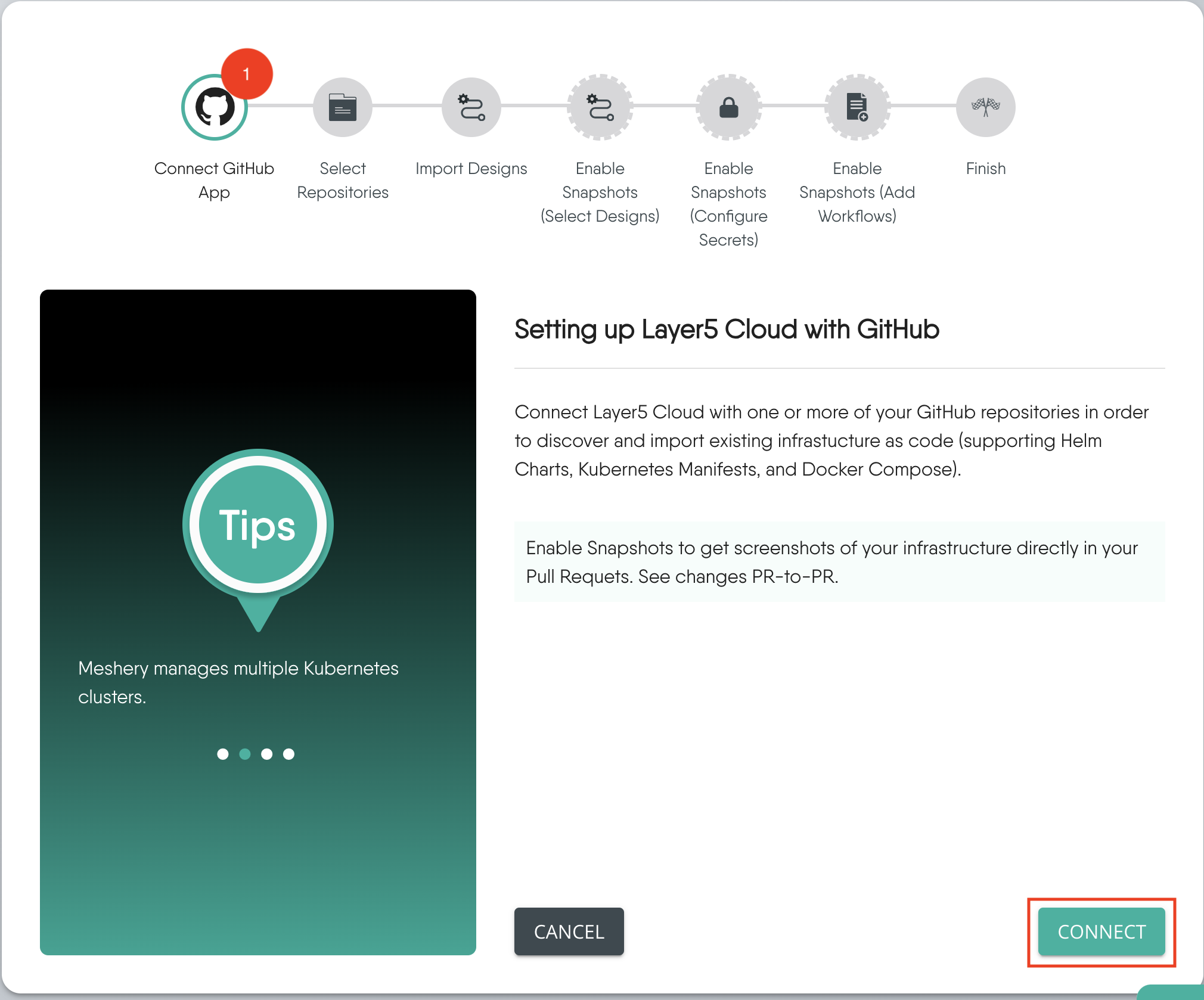

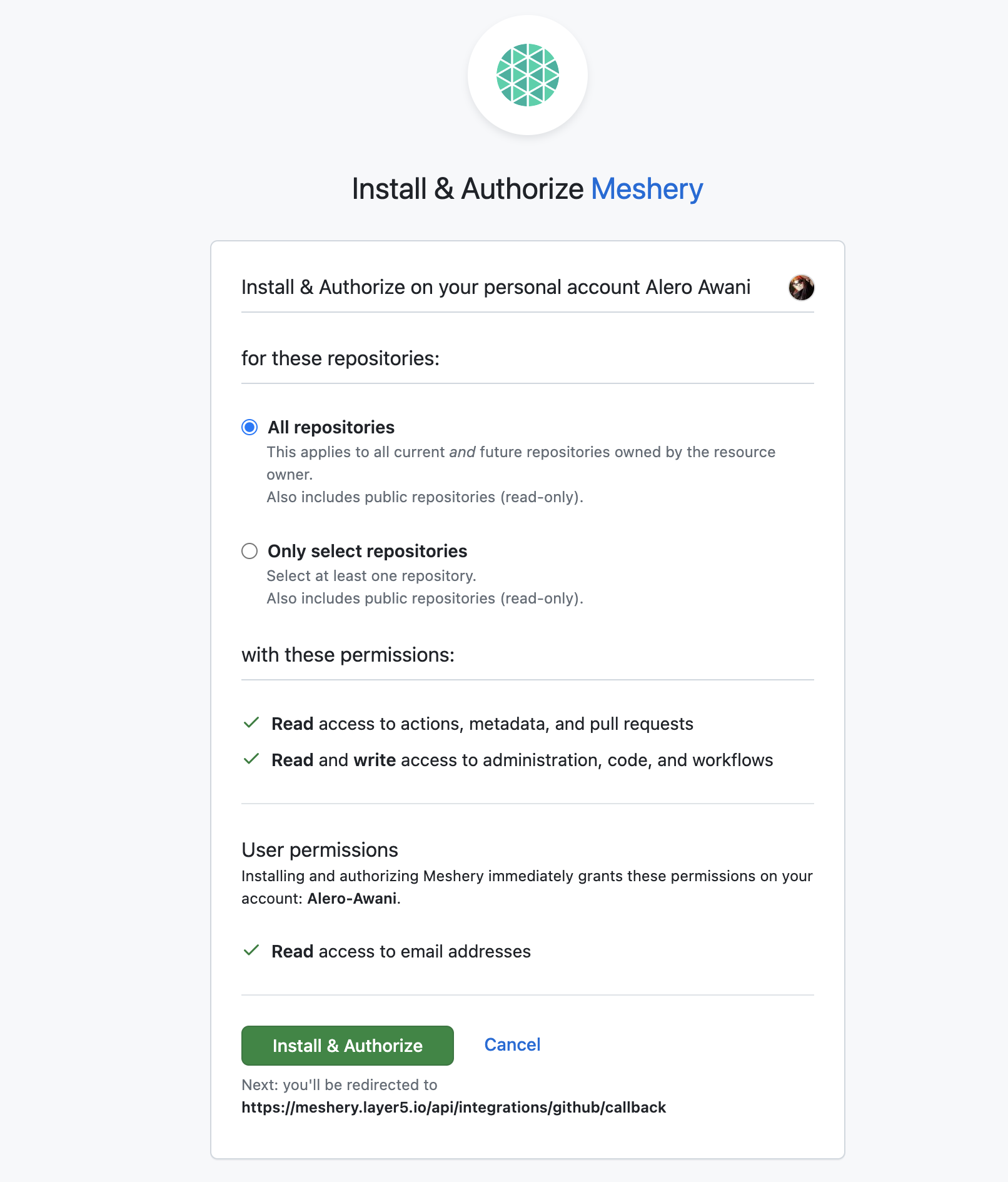

1. Connect GitHub App. GitHub asks you to install the Layer5 GitHub App on a personal or organization account and to choose whether the App may reach all repositories or only the ones you select. From Layer5 Cloud v1.0.287, GitHub reports which installations your GitHub account can access, and only those are connected.

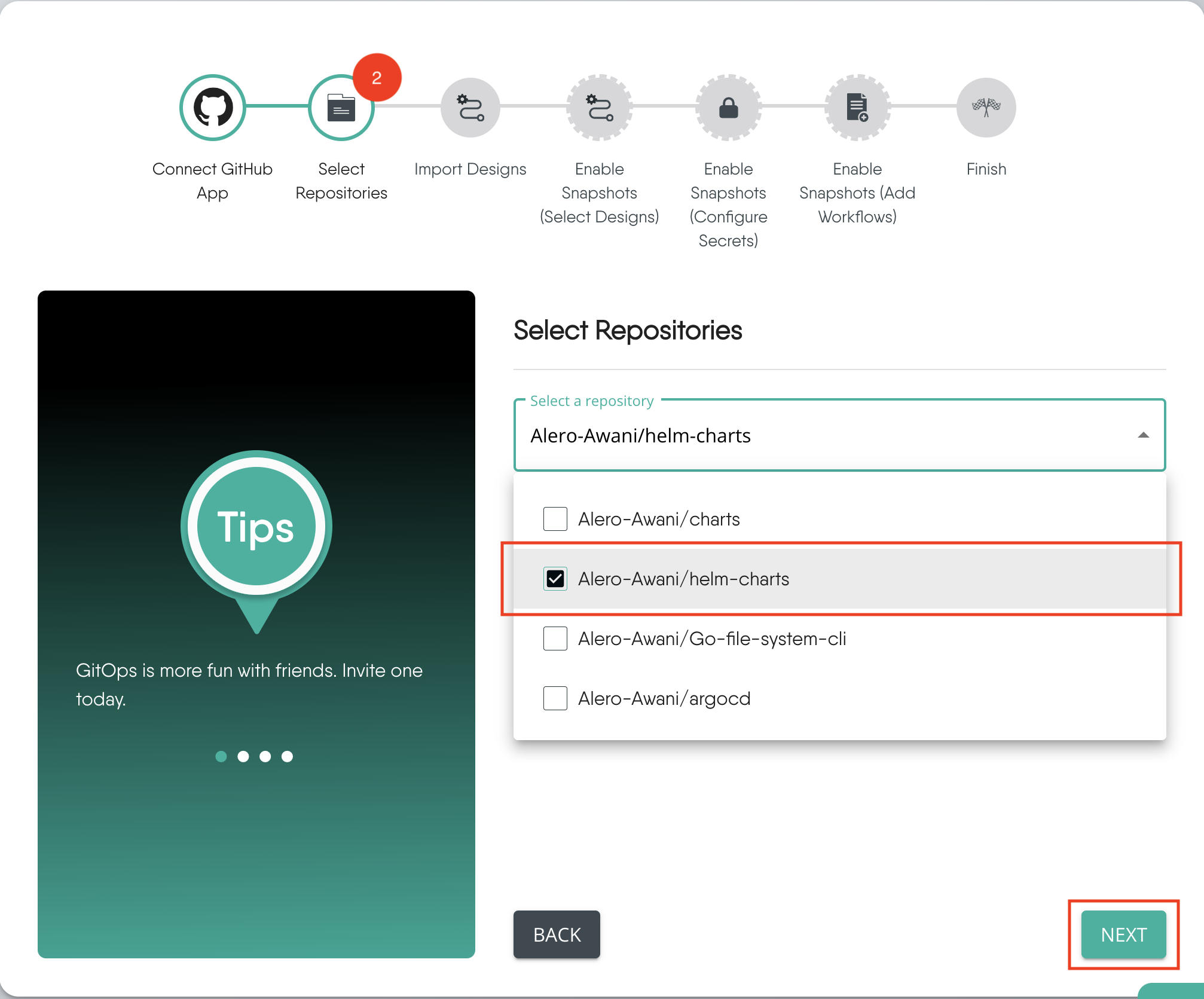

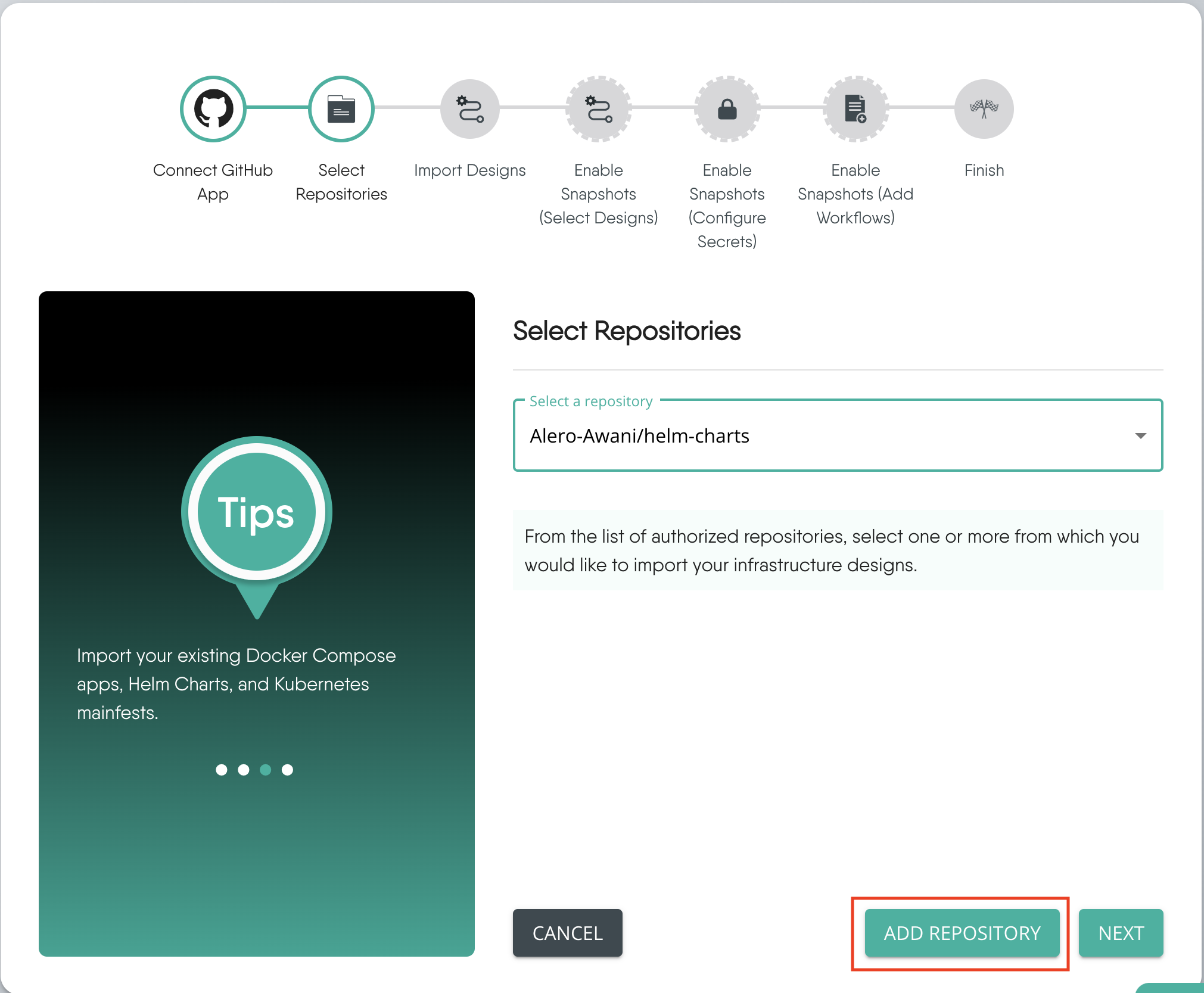

2. Select Repositories. Select the repositories, then click Next. Add Repository reopens the GitHub installation page so you can change access or install on another account. When you install the App on another account, the new installation joins the ones you already had.

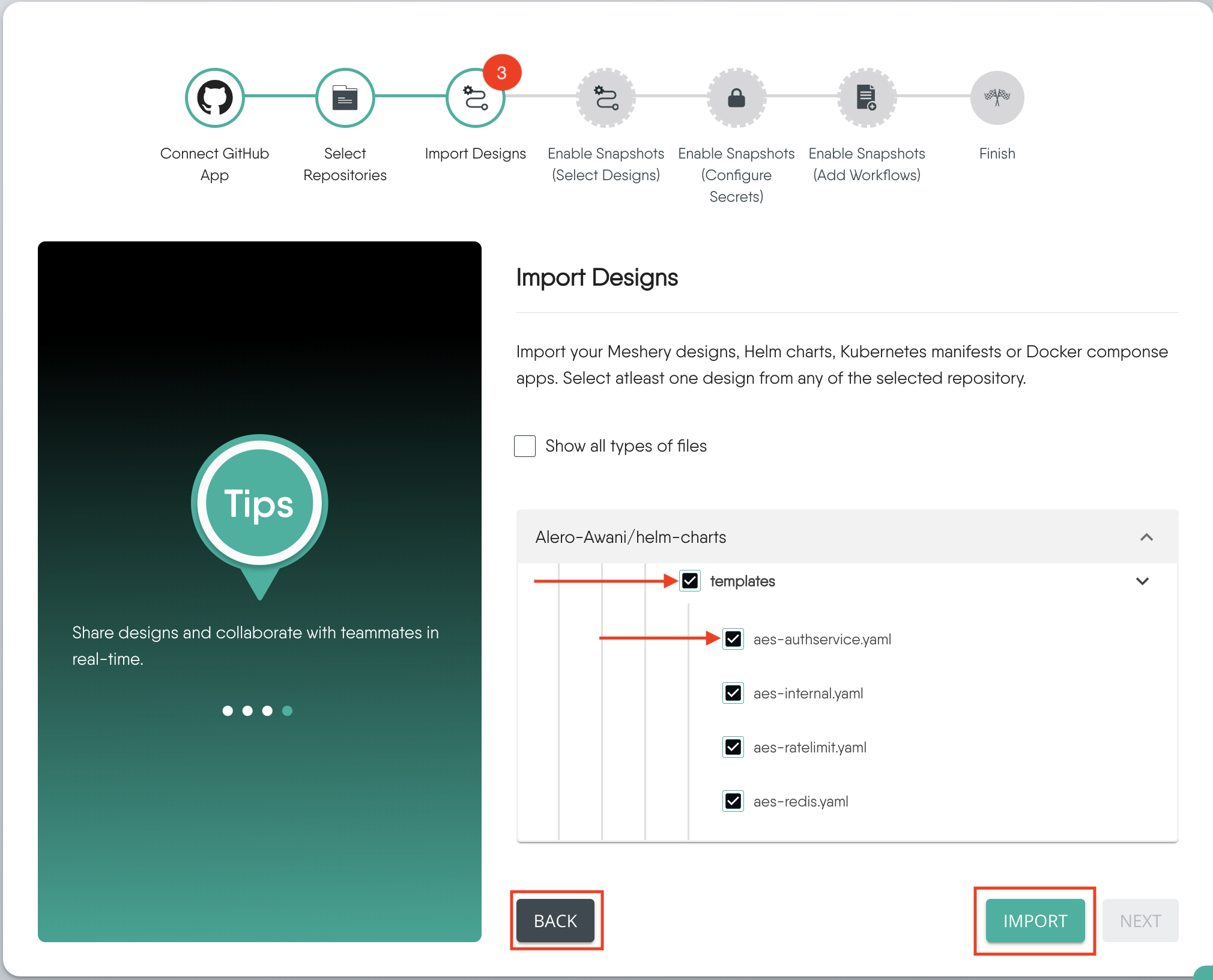

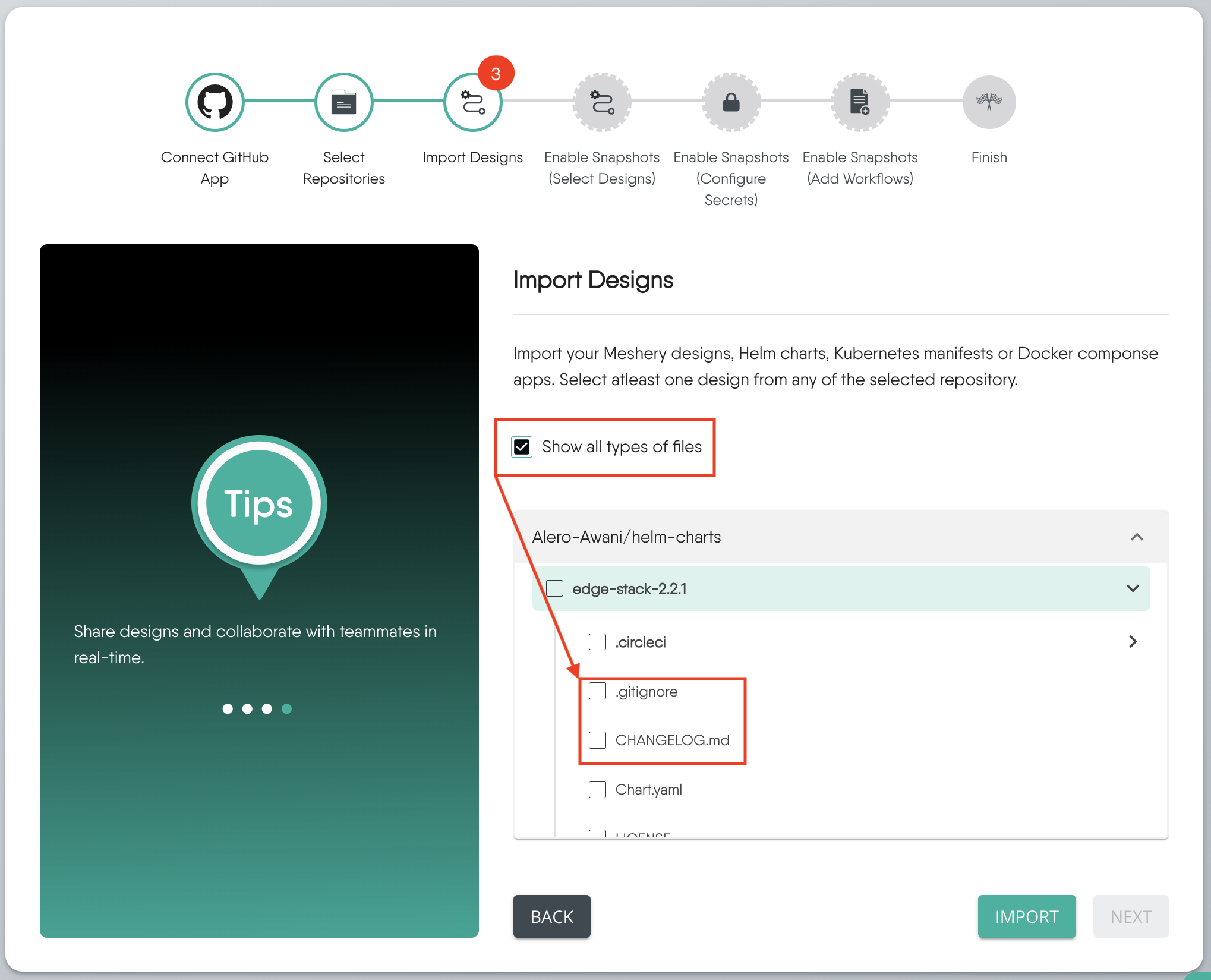

3. Import Designs. A checkbox switches the file list between every file and only the types Layer5 Cloud can import. Select files or a directory, then click Import. Selecting a directory imports every supported file beneath it. A file selected both on its own and through its directory is imported once.

Layer5 Cloud accepts .yml, .yaml, .json, .tar, .tar.gz, .tar.tgz, .zip, and .gz. A file that fails sanitizing or identification is reported as invalid or unsupported and does not stop the other files.

Layer5 Cloud scans a repository by reading its full file tree from GitHub and keeps the result for five minutes. Scans and imports always use each repository’s default branch. GitHub truncates the tree for very large repositories. When that happens, the file list is partial and Cloud answers with HTTP status 206. If a file you need is missing, select its directory or import it directly.

[Optional] Enabling Snapshots 🔗

These steps are optional. They commit a workflow so pull requests can show a Kanvas snapshot. Import itself never writes to your repository. Only these stages commit a file.

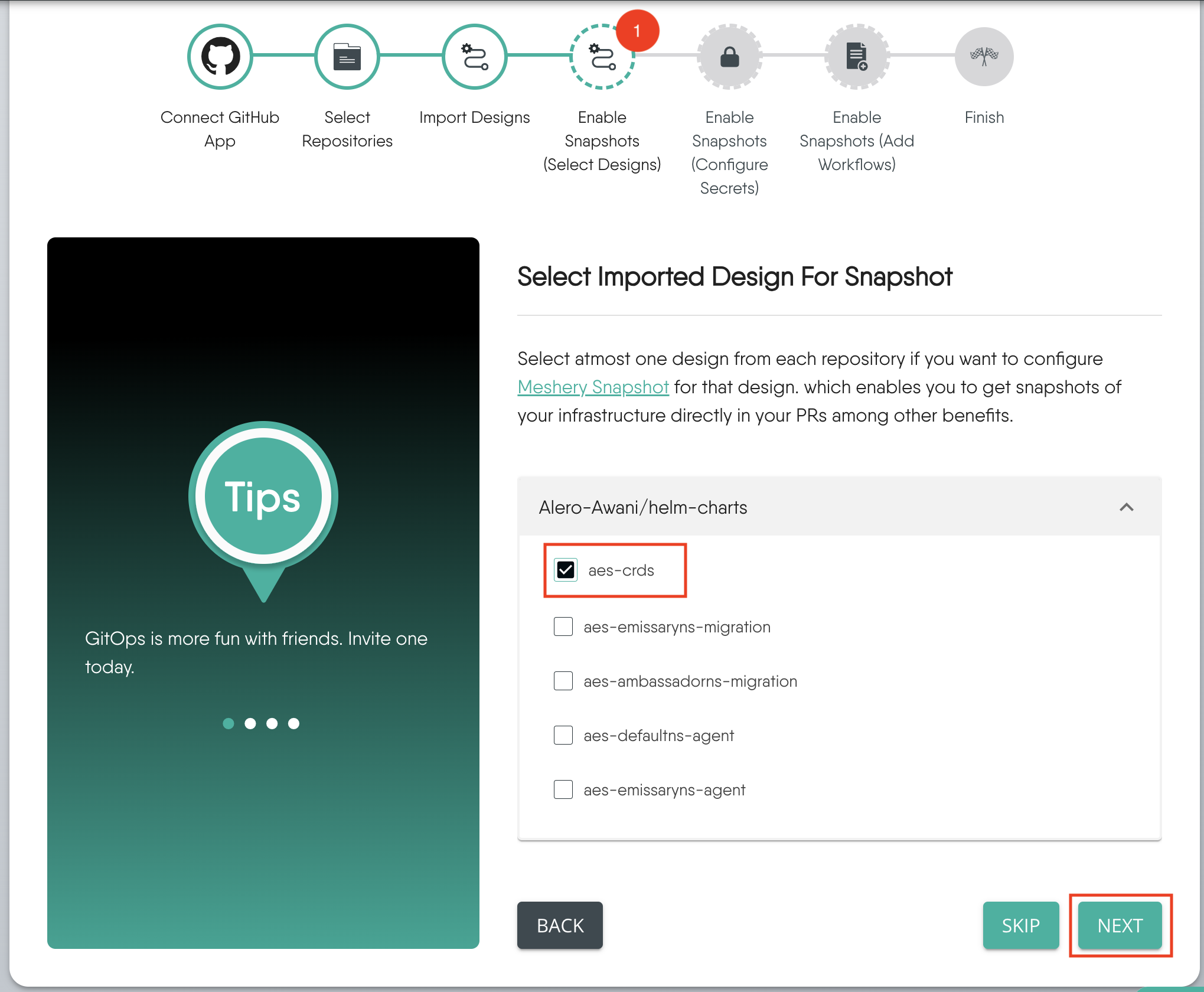

1. Select Designs. Select the design from the repository you want to enable snapshots for, then click Next.

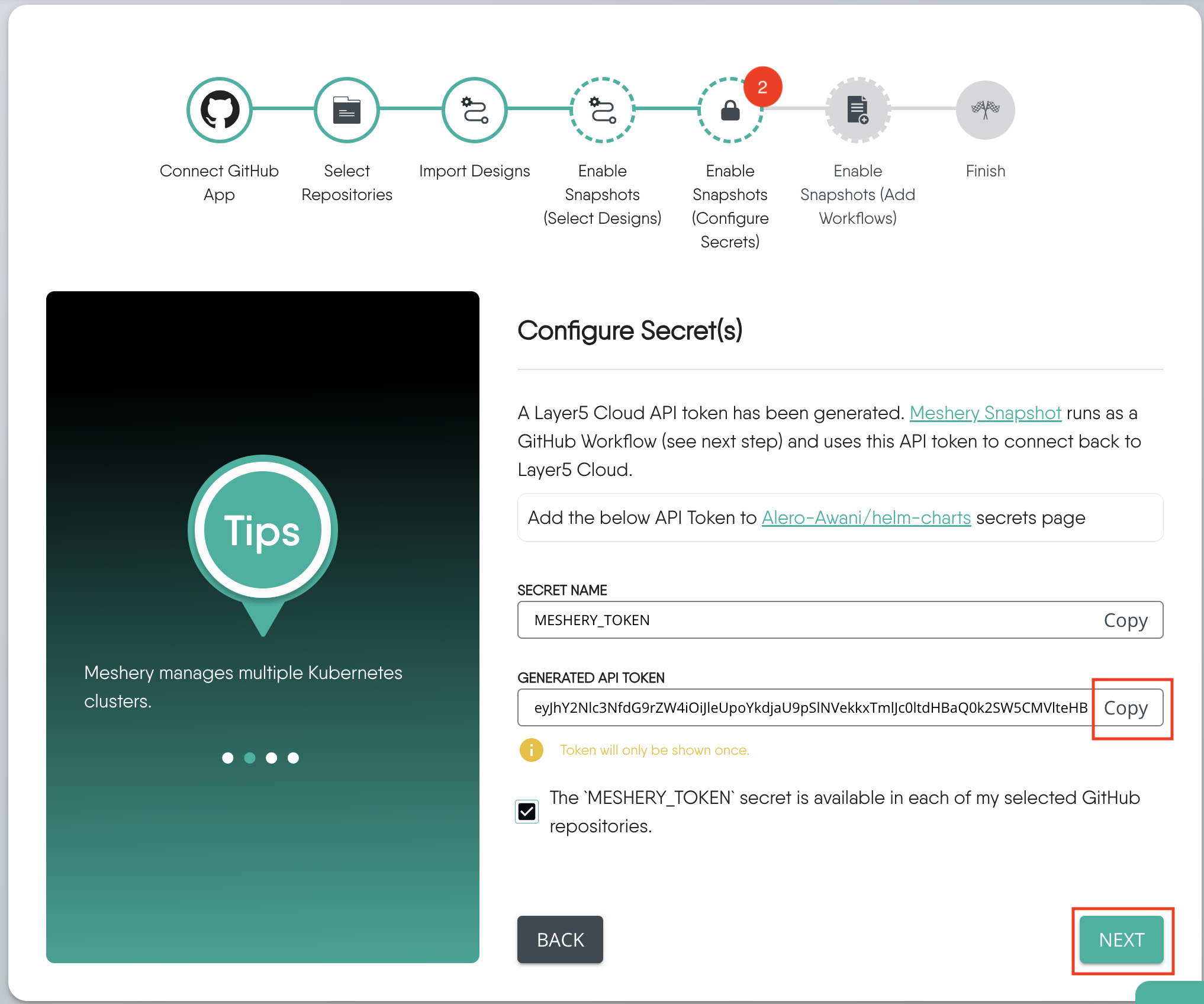

2. Configure Secrets. Copy the API TOKEN and add it to the repository secrets. Tick the checkbox to confirm.

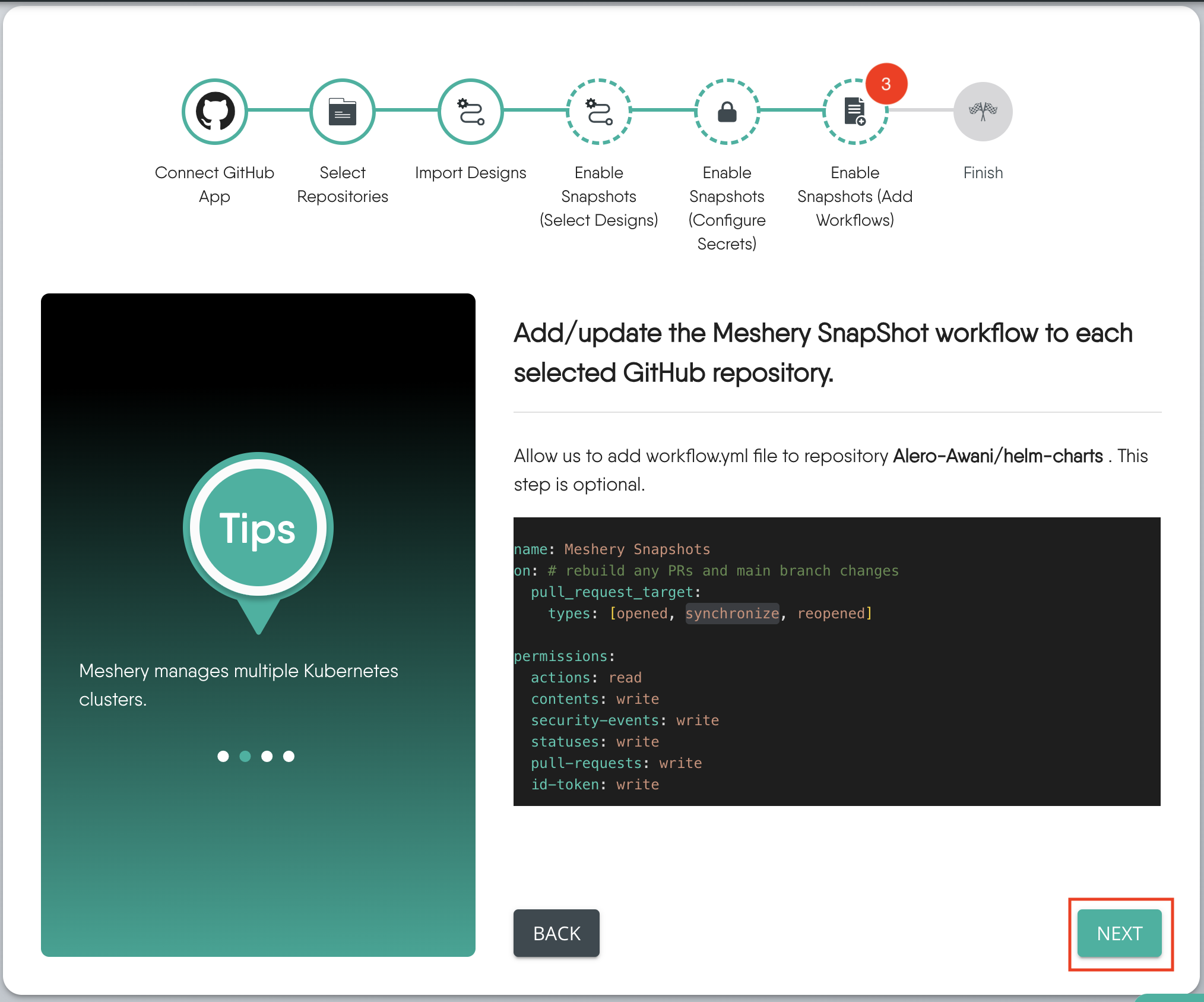

3. Add workflows. The workflow runs when a pull request is opened, synchronized, or reopened. See Kanvas Snapshot.

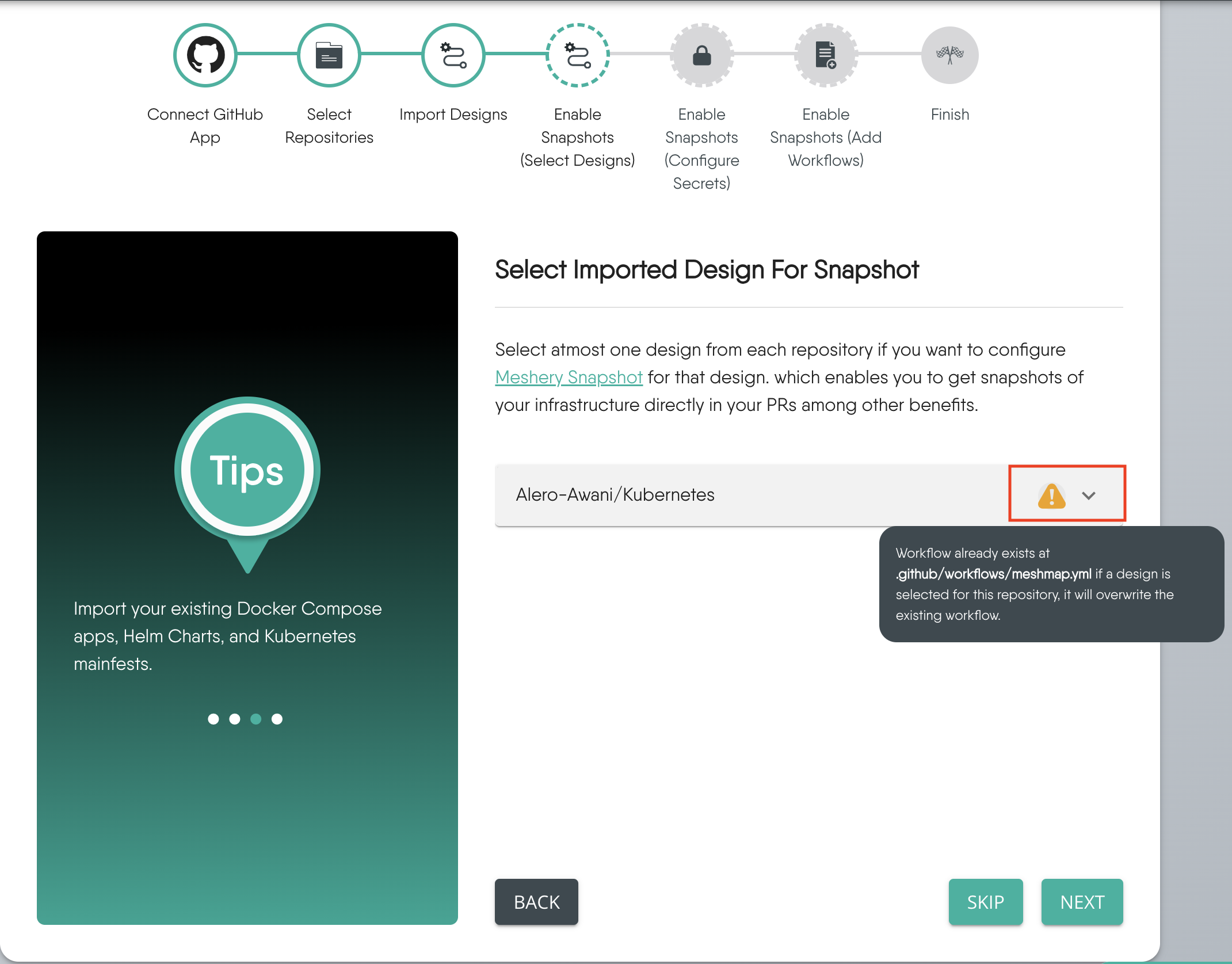

If the workflow file is already present, GitHub refuses the write with Workflow already exists, try deleting it first at ./.github/workflows/kanvas.yml. Delete that file first. The wizard does not overwrite it.

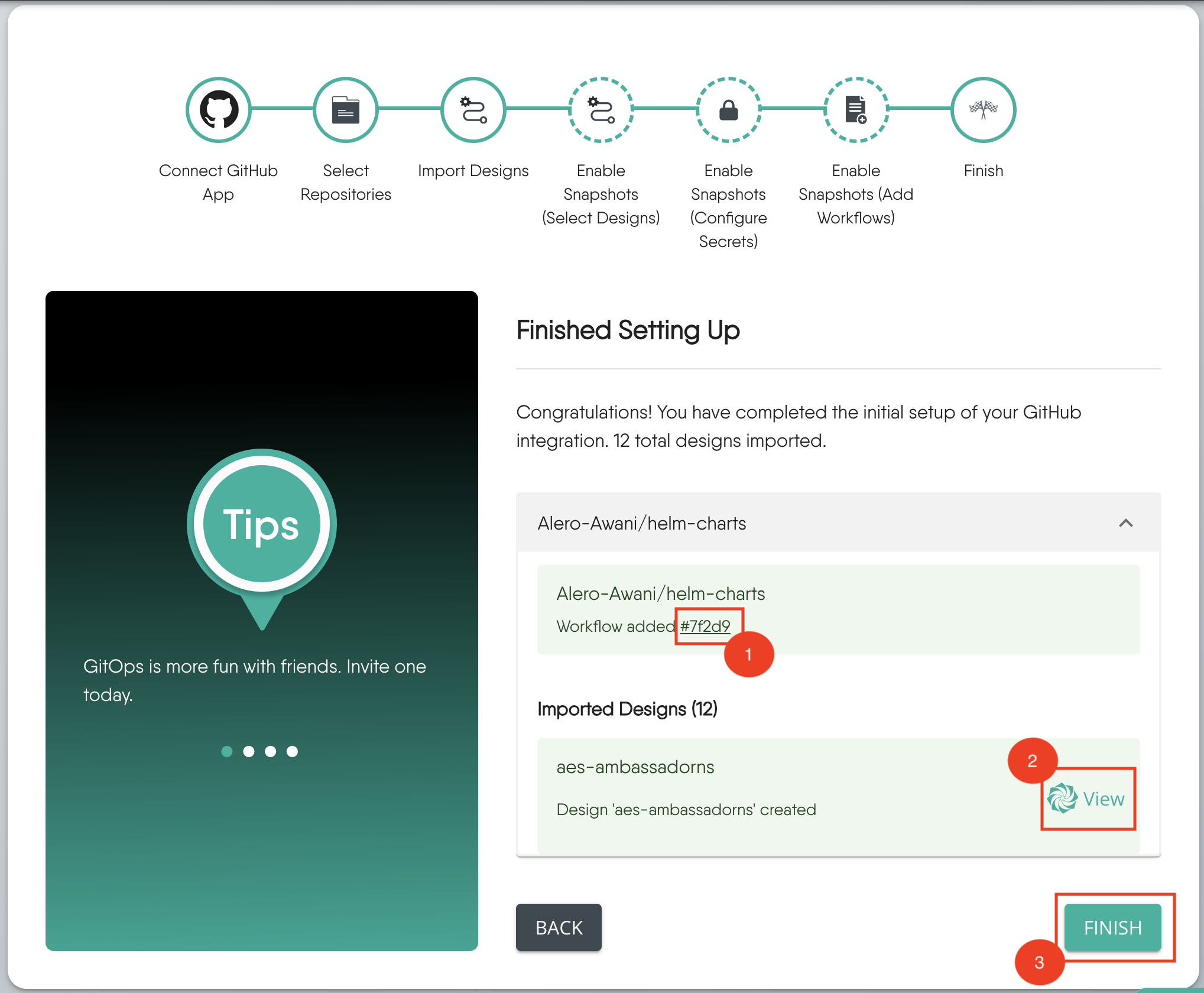

Finish Setup 🔗

The finish stage summarizes what was imported and which repositories received the workflow. Click Finish when it looks right.

View Imported Designs 🔗

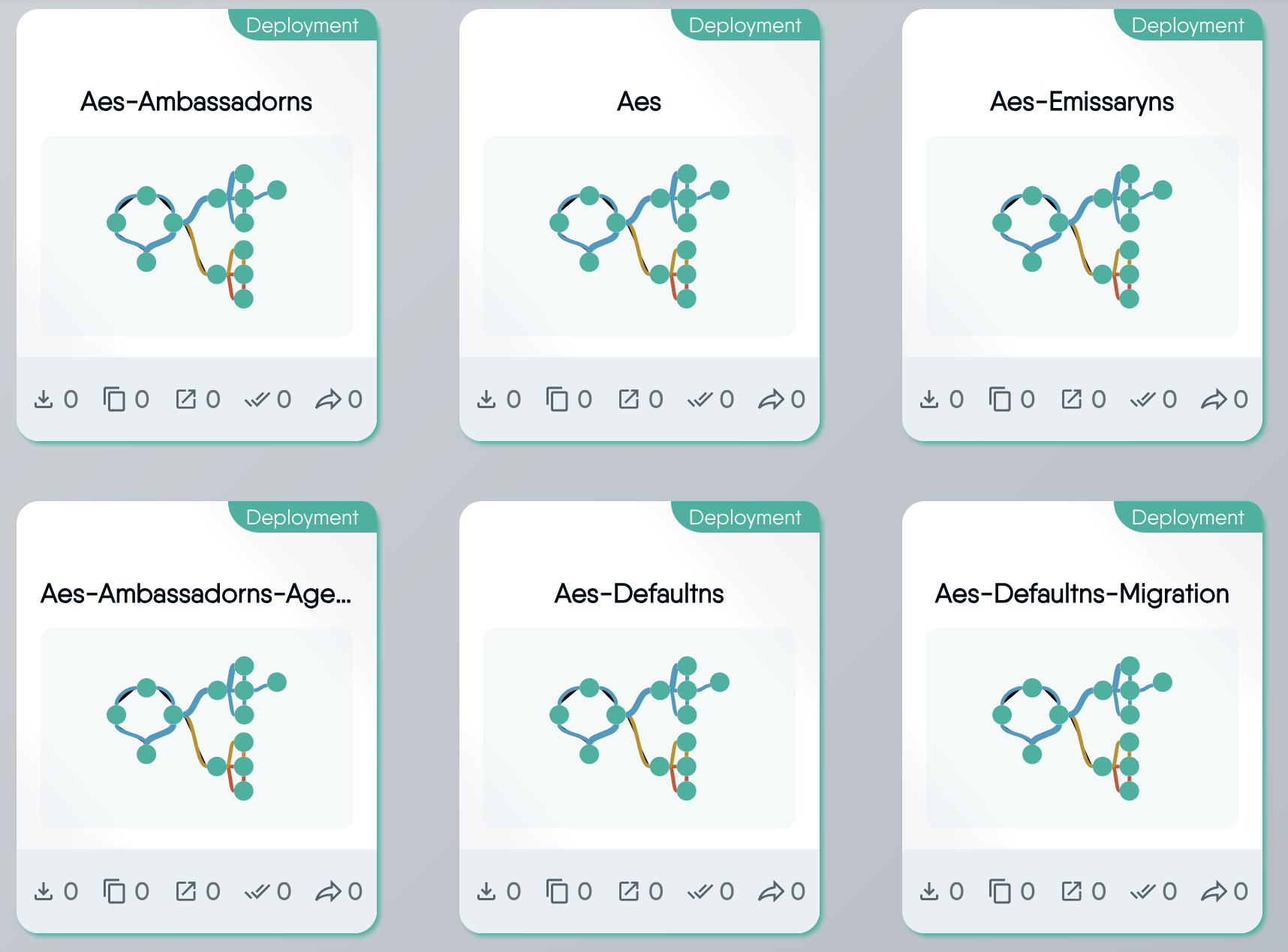

Imported designs appear in My Designs. After the import, a notification sums up the result, for example 2 designs imported, 1 updated, 3 already imported and skipped.

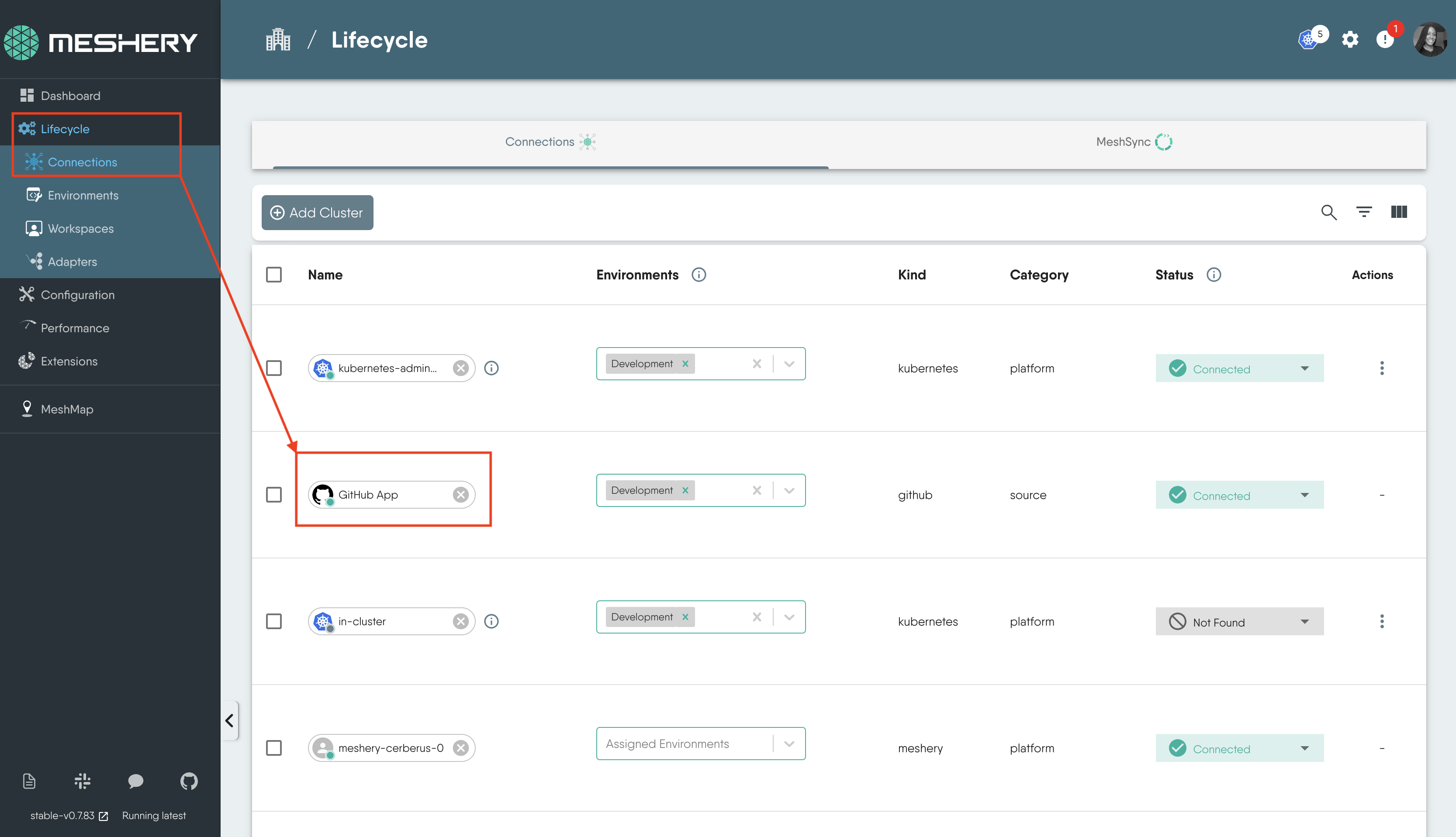

View GitHub Integration Connection on Meshery Playground 🔗

You can also open the connection from the Connections page of a Meshery Server. In Layer5 Cloud, the connection is on the Integrations area of Spaces.

Delete GitHub Integration 🔗

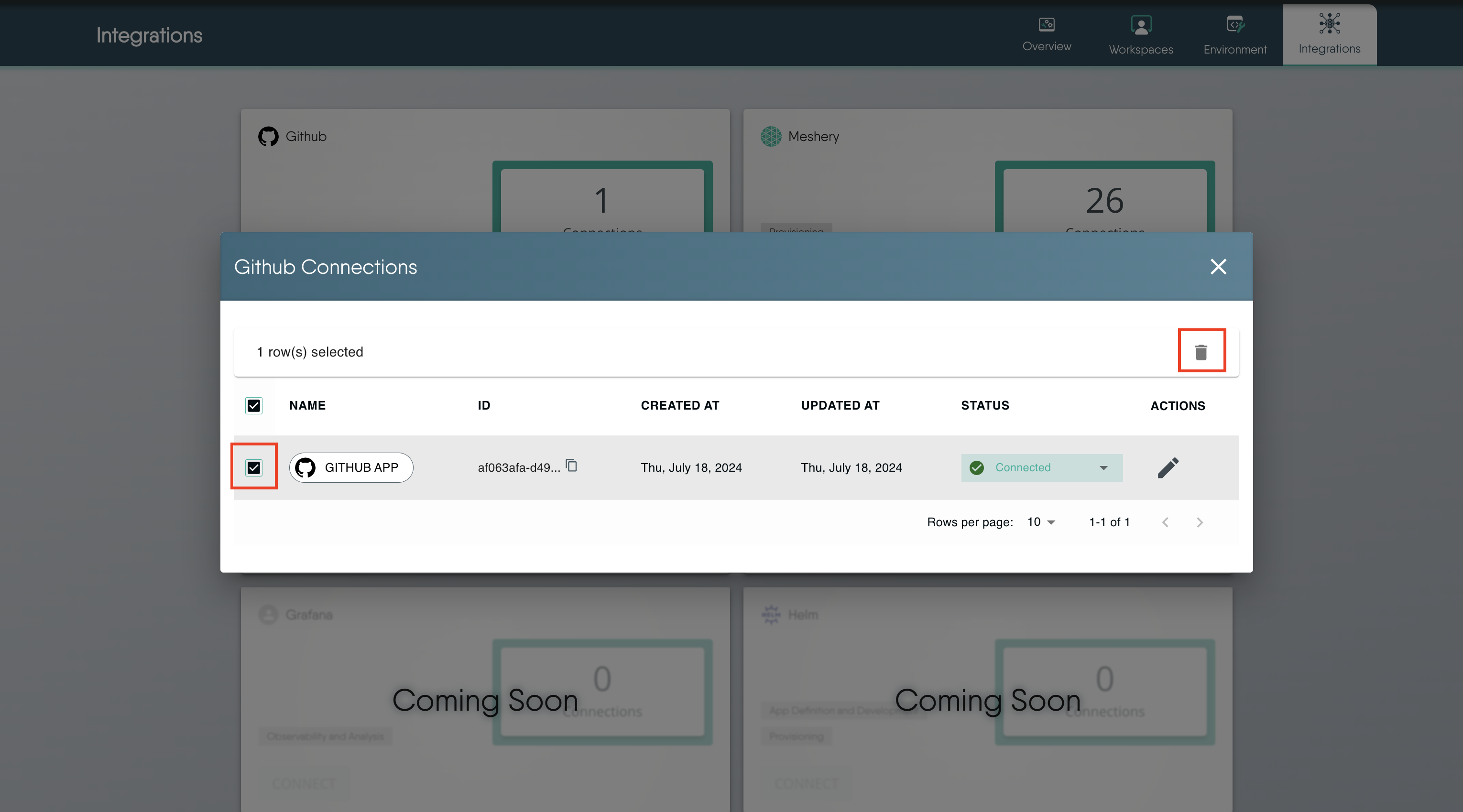

Delete the GitHub connection from the Integrations area, or from the Connections page of a Meshery Server. You can delete only a connection you own, and you need the Delete a connection permission.

Deleting the connection removes it from Layer5 Cloud. It does not uninstall the App from GitHub, delete imported designs, or remove a workflow already committed to a repository. To revoke the App’s access, uninstall the Layer5 GitHub App in your GitHub account settings. Delete .github/workflows/kanvas.yml from a repository to stop its snapshots.

Conclusion 🔗

You connect a GitHub account, import files as private designs, and optionally add a snapshot workflow. Each user has their own connection. A teammate who wants to import connects their own account.

How the connection works 🔗

• The connection belongs to you, not to your organization. Each user has at most one GitHub connection.
• GitHub confirms which installations are yours. This check ships in Layer5 Cloud v1.0.287.
• The App sees only what you grant. Layer5 Cloud lists exactly those repositories.
• Cloud reads the default branch.
• Import is read-only. Importing creates designs. It never writes to your repository.

Layer5 Cloud verifies that the App installation the wizard opens on still exists. If you uninstalled the App from that account, Cloud removes only that installation from the connection and opens the wizard on the next installation your connection holds. Cloud deletes the connection only once none of its installations remain.

What an import produces 🔗

• One design per file. The design is named after the file, including its extension.
• Private by default. The importing user owns it. Publish or share it when you are ready. See Publishing Designs.
• Placed in your selected workspace. From Layer5 Cloud v1.0.291, each new design is added to the workspace selected in your current organization, or to the organization’s first workspace when none is selected, so it shows in My Designs.
• Traceable to its source. The design records its repository, path, and branch. Renaming the design does not break that link.

Import from a repository again 🔗

When you run the wizard again for a repository you have imported from, for example with Reconfigure on the GitHub card, files you already imported carry a check mark. Hover over it to see which design the file became, for example Imported as "nginx-deployment". If you have nothing new to import, click Next without importing.

A file is matched to its design by repository, path and branch, never by name. When your selection includes files you imported before, Layer5 Cloud asks what to do with them before importing. The prompt lists the files, up to five followed by “and N more”, and offers three choices:

Click Import to proceed, or Cancel to change the selection.

See where a design came from 🔗

In the table view of My Designs, the Source column shows the repository and file path of each imported design, followed by the branch when it is not the repository’s default. Hover over it to see the full source, or click it to open the file on GitHub. The cell is empty for a design that was not imported from GitHub. The column appears on large screens.

An imported design’s details page has a Source section that lists the repository, the file path, and the branch (“Default branch” when the design follows the repository’s default branch). The source stays with the design when you edit it.

Manage imported designs 🔗

From Layer5 Cloud v1.0.291, your GitHub connection lists every design you have imported from GitHub.

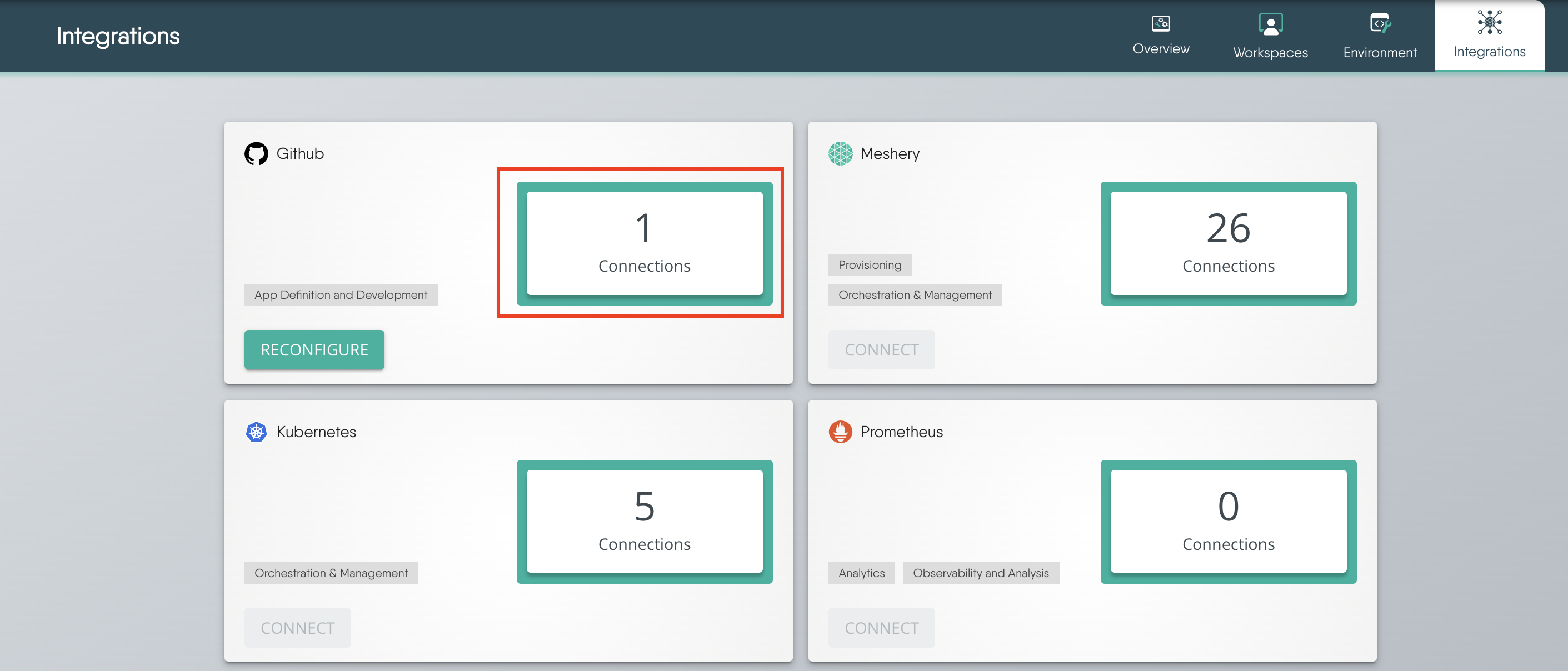

1. On the Integrations area of Spaces, click the GitHub card’s connection count to open GitHub Connections.
2. Click your connection to expand it. Imported designs lists your imported designs, newest first:

   Column	Shows
   Design	The design’s name.
   Type	The format the design was imported from, or - when it is not known.
   Source	The repository, file path and, when it is not the default, branch. Click it to open the file on GitHub.
   Last updated	When the design last changed.
   Actions	Open design opens the design in My Designs. Open source file on GitHub opens the file in a new tab. Refresh from source updates the design from the file.

The list shows only your own designs, and only you can see it on your connection. It includes every design you imported from GitHub, whatever its workspace, so designs imported before Layer5 Cloud v1.0.291 are listed here until you move them to a workspace. When you have not imported any designs yet, it reads “No imported designs yet” and offers Import designs. If the list cannot be loaded, it reads “Imported designs could not be loaded”; click Try again.

Refresh a design from its source 🔗

When a file changes in its repository, refresh the design instead of importing the file again:

1. In Imported designs, click Refresh from source on the design’s row. The action appears only if your role holds Import Design.
2. Confirm with Refresh. The design’s content is replaced with the file’s current content on GitHub, and changes made to the design since it was imported or last refreshed are lost.

The refresh updates the same design, so it keeps its ID, owner, visibility, catalog data, workspace assignments and links. Only its content and source change. A design that was not imported as a Meshery design keeps its source file unconverted and is converted the next time you open it.

Re-authorize an existing connection 🔗

A connection created before Layer5 Cloud v1.0.287 opens the wizard on Re-authorize your GitHub connection, and its repositories cannot be used until GitHub confirms which installations your GitHub account can access. Click Re-authorize. GitHub returns you to the wizard, without asking again if you have already authorized the App, and your repository settings are kept.

Self-hosted GitHub App requirements 🔗

The hosted service provides the Layer5 GitHub App. A self-hosted deployment uses its own GitHub App, and from Layer5 Cloud v1.0.287 that App must meet every item below. See the matching values in Helm Chart Values.

• Each Layer5 Cloud deployment has its own GitHub App. Do not share one App between deployments, such as production and staging.
• The App’s first callback URL is this deployment’s https://<host>/api/integrations/github/callback, where <host> is the deployment’s public hostname. Layer5 Cloud sends GitHub no redirect_uri, so GitHub always returns to the first callback URL.
• Request user authorization (OAuth) during installation is enabled.
• githubappid, the private key, githubAppClientId and githubAppClientSecret all come from that same App.

Without the OAuth client ID and client secret, no GitHub connection can be created or re-authorized.

Troubleshooting 🔗

Permissions 🔗

See Default Permissions for which roles hold these keys.
